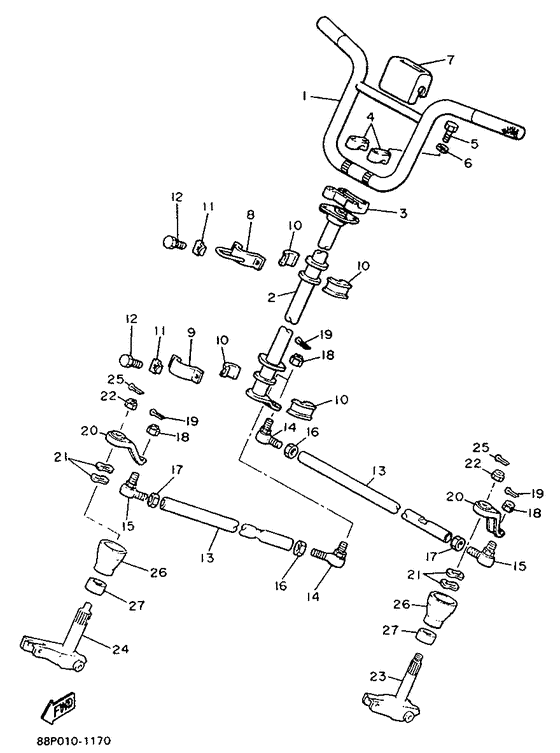

Steering Diagram Yamaha BR250 Bravo
- Model code
- 8BD2
- Engine Capacity
- 246
- Year
- 1995
- Sales region
- Canada (999)
- Colour
- Very Dark Blue Metallic 3 (VDBM3; 0266)
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
86A-23811-90-00 Column, Steering |
86A-23811-90-00 |
from US $56.48 |
||
|
02
|
02
8R4-23813-00-00 Column, Steering 2 |
8R4-23813-00-00 |
from US $57.47 |
||
|
03
|
03
164-23441-00-98
Holder, Handle Under (8G5-23814
Low gloss black |
164-23441-00-98 |
— | ||
| replacement | |||||
|
03
|
03
164-23441-01-98 Handle, HolderLow gloss black |
164-23441-01-98 |
from US $47.25 |
||
|
04
|
04
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
05
|
05
970-27080-55-00
Bolt, Hexagon
|
970-27080-55-00 |
— | ||
| replacement | |||||
|
05
|
05
97017-08055-00 Bolt |
97017-08055-00 |
from US $4.68 |
||
|
06
|
06
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
07
|
07
8F3-23818-00-00 Cover, Steering |
8F3-23818-00-00 |
from US $12.89 |
||
|
08
|
08
8Y4-23872-00-00 Holder, Bearing |
8Y4-23872-00-00 |
from US $14.31 |
||
| replacement | |||||
|
08
|
08
84M-23872-00-00 Holder, Bearing |
84M-23872-00-00 |
from US $14.31 |
||
|
09
|
09
84M-23868-00-00 Bracket, Steering Lower |
84M-23868-00-00 |
from US $14.31 |
||
| replacement | |||||
|
09
|
09
84M-23872-00-00 Holder, Bearing |
84M-23872-00-00 |
from US $14.31 |
||
|
10
|
10
8F3-23812-00-00 Bearing, Steering |
8F3-23812-00-00 |
from US $7.49 |
||
|
11
|
11
90215-08262-00 Washer, Lock 1 |
90215-08262-00 |
from US $1.98 |
||
| replacement | |||||
|
11
|
11
8AC-23894-01-00 Washer, Lock 1 |
8AC-23894-01-00 |
from US $1.98 |
||
|
12
|
12
97017-08020-00 Bolt |
97017-08020-00 |
from US $2.13 |
||
|
13
|
13
8R4-23821-00-00 Rod, Steering Relay |
8R4-23821-00-00 |
from US $16.89 |
||
|
14
|
14
86X-23841-00-00 Joint, Universal 1 |
86X-23841-00-00 |
from US $33.68 |
||
|
15
|
15
86X-23845-00-00 Joint, Universal 2 |
86X-23845-00-00 |
from US $36.20 |
||
|
16
|
16
95307-10700-00 Nut (95307-10700-00 ) |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
95317-10700-00 Nut |
95317-10700-00 |
from US $2.41 |
||
|
17
|
17
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.66 |
||
|
18
|
18
90185-10085-00 Nut, Self-Locking |
90185-10085-00 |
from US $1.98 |
||
|
19
|
19
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
19
|
19
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
20
|
20
88P-23851-00-00
Arm, Outside 1
|
88P-23851-00-00 |
— | ||
|
21
|
21
90206-20037-00 Washer, Wave |
90206-20037-00 |
from US $2.13 |
||
|
22
|
22
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.70 |
||
|
23
|
23
8Y1-23853-00-00
Column, Ski 1
|
8Y1-23853-00-00 |
— | ||
|
24
|
24
8Y1-23854-00-00
Column, Ski 2
|
8Y1-23854-00-00 |
— | ||
|
25
|
25
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
25
|
25
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
26
|
26
8U0-2198G-00-00
Cover 2
|
8U0-2198G-00-00 |
— | ||
|
27
|
27
8Y1-21998-00-00
Spacer
|
8Y1-21998-00-00 |
— | ||
