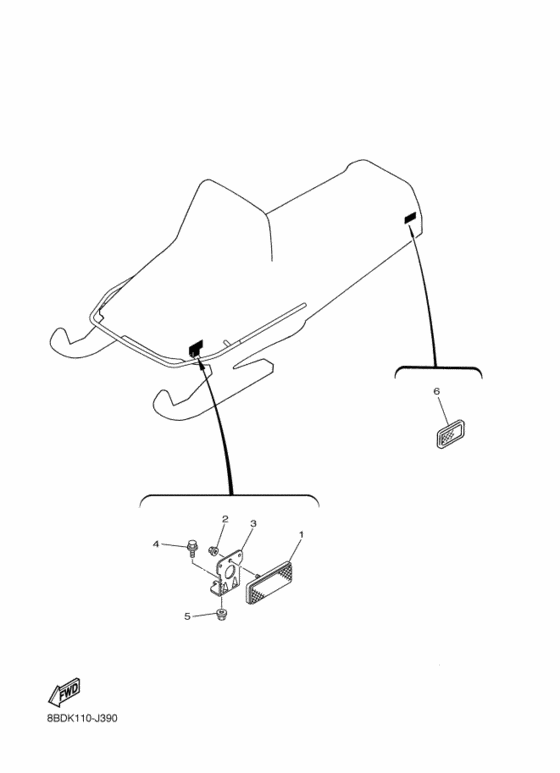

Electrical 2 Diagram Yamaha BR250 Bravo
- Model code
- 8BDM
- Engine Capacity
- 246
- Year
- 2011
- Sales region
- Europe (010)
- Colour
- Black Metallic X (SMX; 0903)
- Color Variant
- A
- Power
- 18 hp
- Model
- Bravo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GM-85110-00-00 Reflector Assy |
8GM-85110-00-00 |
from US $9.15 |
||
|
2
|
2
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
3
|
3
8BD-83635-00-00 Bracket |
8BD-83635-00-00 |
US $61.13 |
||
|
4
|
4
95802-06014-00 Bolt, Flange |
95802-06014-00 |
from US $1.18 |
||
| replacement | |||||
|
4
|
4
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
5
|
5
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
5
|
5
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
6
|
6
81G-85130-00-00 Rear Reflector Assy |
81G-85130-00-00 |
from US $14.73 |
||
