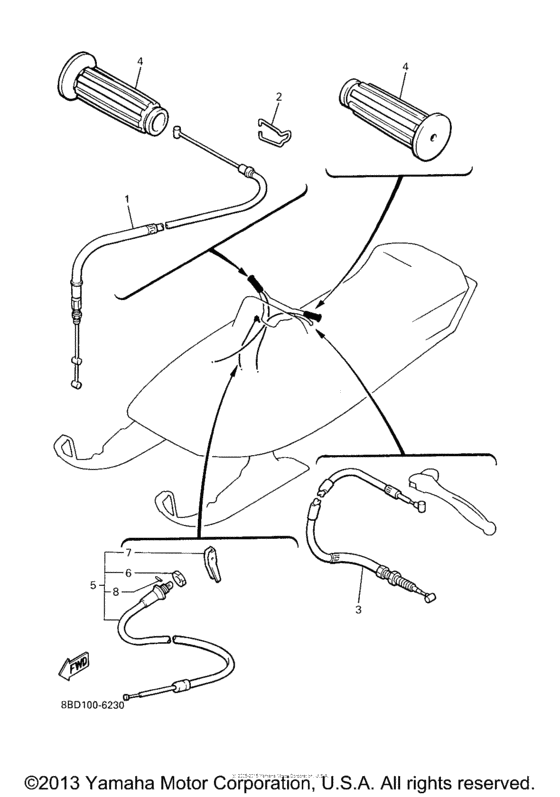

Control cable Diagram Yamaha BR250 Bravo Trapper
- Model code
- 8BD8
- Engine Capacity
- 246
- Year
- 2001
- Sales region
- USA
- Power
- 18 hp
- Model
- Bravo Trapper
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83Y-26311-01-00 Cable, Throttle 1USA |
83Y-26311-01-00 |
from US $26.92 |
||
|
2
|
2
90465-10189-00 Clamp |
90465-10189-00 |
from US $3.40 |
||
|
3
|
3
8R4-26340-00-00 Cable, Brake |
8R4-26340-00-00 |
from US $31.31 |
||
|
4
|
4
801-26241-01-00 Grip |
801-26241-01-00 |
from US $8.22 |
||
| replacement | |||||
|
4
|
4
801-26241-02-00 Grip |
801-26241-02-00 |
from US $8.22 |
||
|
5
|
5
80F-26331-00-00 Cable, Starter 1USA |
80F-26331-00-00 |
from US $30.18 |
||
| replacement | |||||
|
5
|
5
80F-26331-01-00 USA |
80F-26331-01-00 |
from US $27.34 |
||
|
6
|
6
8G8-26333-00-00 Nut |
8G8-26333-00-00 |
from US $3.12 |
||
|
7
|
7
8L2-26331-00-00
Knob, Starter
|
8L2-26331-00-00 |
— | ||
|
8
|
8
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
8
|
8
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
