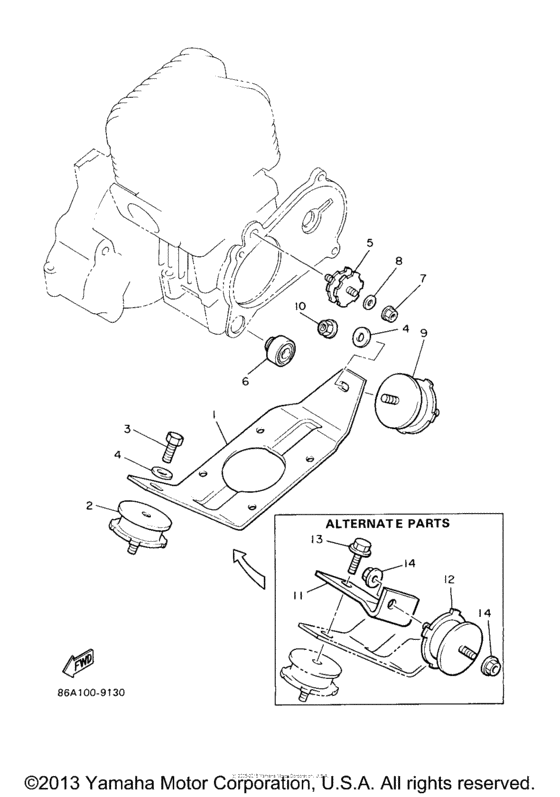

Engine bracket Diagram Yamaha BR250 Bravo Trapper
- Model code
- 8BD8
- Engine Capacity
- 246
- Year
- 2001
- Sales region
- USA
- Power
- 18 hp
- Model
- Bravo Trapper
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8R4-21411-00-00 Bracket, Engine 1USA |
8R4-21411-00-00 |
from US $43.52 |
||
|
2
|
2
8R4-21485-00-00 Damper, Rubber 1USA |
8R4-21485-00-00 |
from US $20.54 |
||
|
3
|
3
95807-10014-00 Bolt, Flange |
95807-10014-00 |
from US $2.13 |
||
|
4
|
4
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
5
|
5
8V7-21486-00-00 Damper 2USA |
8V7-21486-00-00 |
from US $38.60 |
||
|
6
|
6
8R4-21488-01-00 Damper |
8R4-21488-01-00 |
from US $4.82 |
||
|
7
|
7
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
7
|
7
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
8
|
8
92907-08200-00 Washer |
92907-08200-00 |
from US $1.66 |
||
|
9
|
9
8F3-21486-00-00 Damper 2USA |
8F3-21486-00-00 |
from US $48.09 |
||
|
10
|
10
90179-10279-00 Nut |
90179-10279-00 |
from US $1.28 |
||
|
11
|
11
86A-21419-00-00 Bracket, Engine 2AP USA |
86A-21419-00-00 |
from US $42.67 |
||
|
12
|
12
8F3-21486-00-00 Damper 2AP USA |
8F3-21486-00-00 |
from US $48.09 |
||
|
13
|
13
957-07105-00-00 Nut, FlangeAP USA |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
90179-10394-00 Nut, FlangeAP USA |
90179-10394-00 |
from US $1.66 |
||
|
14
|
14
95807-10020-00 Bolt, FlangeAP USA |
95807-10020-00 |
from US $1.18 |
||
| replacement | |||||
|
14
|
14
958-17100-20-00 Bolt, FlangeAP USA |
958-17100-20-00 |
from US $1.18 |
||
