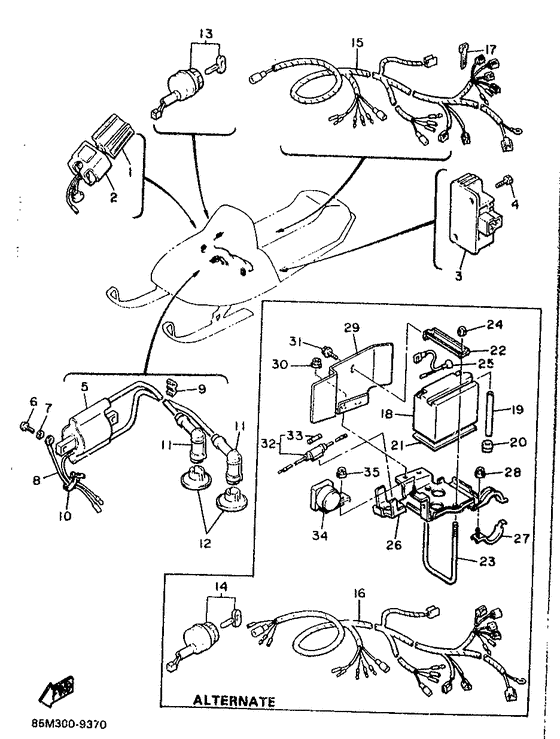

Electrical 1 Diagram Yamaha CS340 Ovation
- Model code
- 85M1
- Engine Capacity
- 337
- Year
- 1988
- Sales region
- Europe (General) (999)
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
81L-85540-M0-00
C.d.i. Unit Assy
|
81L-85540-M0-00 |
— | ||
|
02
|
02
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
03
|
03
22J-81960-92-00 Rectifier/reg Assembly |
22J-81960-92-00 |
from US $140.92 |
||
|
04
|
04
97002-05012-00 Bolt |
97002-05012-00 |
from US $1.56 |
||
| replacement | |||||
|
04
|
04
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.52 |
||
|
05
|
05
85T-82310-00-00 Ignition Coil Assy |
85T-82310-00-00 |
from US $79.36 |
||
| replacement | |||||
|
05
|
05
85T-82310-09-00 Ignition Coil Assy |
85T-82310-09-00 |
from US $111.06 |
||
|
06
|
06
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
08
|
08
85L-82318-00-00
Wire, Sub-Lead
|
85L-82318-00-00 |
— | ||
| replacement | |||||
|
08
|
08
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
|
09
|
09
8W6-82355-00-00 Grommet 1 |
8W6-82355-00-00 |
from US $4.56 |
||
|
10
|
10
90465-10167-00 Band, Switch Cord |
90465-10167-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
85G-82370-20-00 Plug Cap Assembly |
85G-82370-20-00 |
from US $32.04 |
||
|
12
|
12
8G5-82372-00-00 Seal, Plug Cap |
8G5-82372-00-00 |
from US $3.38 |
||
|
13
|
13
8K4-82508-20-00
Main Switch Assembly
|
8K4-82508-20-00 |
— | ||
| replacement | |||||
|
13
|
13
8K4-82510-20-00
Main Switch Assy
|
8K4-82510-20-00 |
— | ||
|
14
|
14
8K1-82508-20-00 Main Switch AssyAp |
8K1-82508-20-00 |
from US $87.87 |
||
| replacements | |||||
|
14
|
14
8K1-82510-20-00 Main Switch AssyAp |
8K1-82510-20-00 |
from US $88.46 |
||
|
14
|
14
8K1-82510-21-00 MAIN SWITCH ASSYAp |
8K1-82510-21-00 |
from US $61.94 |
||
|
15
|
15
85M-82590-10-00
Wire Harness Assy
|
85M-82590-10-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
85M-82590-10-00
Wire Harness Assy
Ap |
85M-82590-10-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
Ap |
999-99999-99-00 |
— | ||
|
17
|
17
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
17
|
17
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
18
|
18
447-82110-78-00
Battery Assy
Ap yamaha |
447-82110-78-00 |
— | ||
| replacements | |||||
|
18
|
18
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
Ap yamaha |
YB1-4LA20-00-00 |
— | ||
|
18
|
18
CB1-4LA20-00-00
element
Ap yamaha |
CB1-4LA20-00-00 |
— | ||
|
19
|
19
904-45086-84-00 Hose (L340)Ap |
904-45086-84-00 |
from US $5.42 |
||
|
20
|
20
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
21
|
21
82L-82122-00-00 Seat, BatteryAp |
82L-82122-00-00 |
US $8.66 |
||
|
22
|
22
85N-82136-00-00 Plate, Battery FittingAp |
85N-82136-00-00 |
US $24.66 |
||
|
23
|
23
8J4-82133-00-00 Screw, FittingAp |
8J4-82133-00-00 |
US $10.53 |
||
|
24
|
24
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
25
|
25
85L-82115-00-00 Wire, Plus Lead |
85L-82115-00-00 |
US $31.12 |
||
| replacement | |||||
|
25
|
25
89X-82115-00-00 Wire, Plus Lead |
89X-82115-00-00 |
US $31.12 |
||
|
26
|
26
85N-2199G-00-00 Bracket, BatteryAp |
85N-2199G-00-00 |
US $277.88 |
||
| replacement | |||||
|
26
|
26
85N-2199G-01-00 Bracket, BatteryAp |
85N-2199G-01-00 |
US $277.83 |
||
|
27
|
27
8V0-82136-00-00 Plate, Battery FittingAp |
8V0-82136-00-00 |
US $15.41 |
||
|
28
|
28
957-01065-00-00
Nut, Flange(34M)
Ap |
957-01065-00-00 |
— | ||
| replacement | |||||
|
28
|
28
95780-06500-00 Nut, FlangeAp |
95780-06500-00 |
from US $1.25 |
||
|
29
|
29
85N-2199H-00-00
Shield, Heat
Ap |
85N-2199H-00-00 |
— | ||
|
30
|
30
957-01065-00-00
Nut, Flange(34M)
Ap |
957-01065-00-00 |
— | ||
| replacement | |||||
|
30
|
30
95780-06500-00 Nut, FlangeAp |
95780-06500-00 |
from US $1.25 |
||
|
31
|
31
95801-06010-00 Bolt, FlangeAp |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
31
|
31
95817-06010-00 Bolt, FlangeAp |
95817-06010-00 |
from US $1.18 |
||
|
31
|
31
95812-06010-00 Bolt, FlangeAp |
95812-06010-00 |
from US $1.07 |
||
|
32
|
32
2J2-82150-00-00
Fuse Holder Assy
Ap |
2J2-82150-00-00 |
— | ||
| replacement | |||||
|
32
|
32
2J2-82150-10-00
Fuse Holder Assembly
Ap |
2J2-82150-10-00 |
— | ||
|
33
|
33
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
33
|
33
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
33
|
33
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
34
|
34
8J9-81940-10-00 Starter Relay AssyAp |
8J9-81940-10-00 |
US $149 |
||
|
35
|
35
957-01065-00-00
Nut, Flange(34M)
Ap |
957-01065-00-00 |
— | ||
| replacement | |||||
|
35
|
35
95780-06500-00 Nut, FlangeAp |
95780-06500-00 |
from US $1.25 |
||
