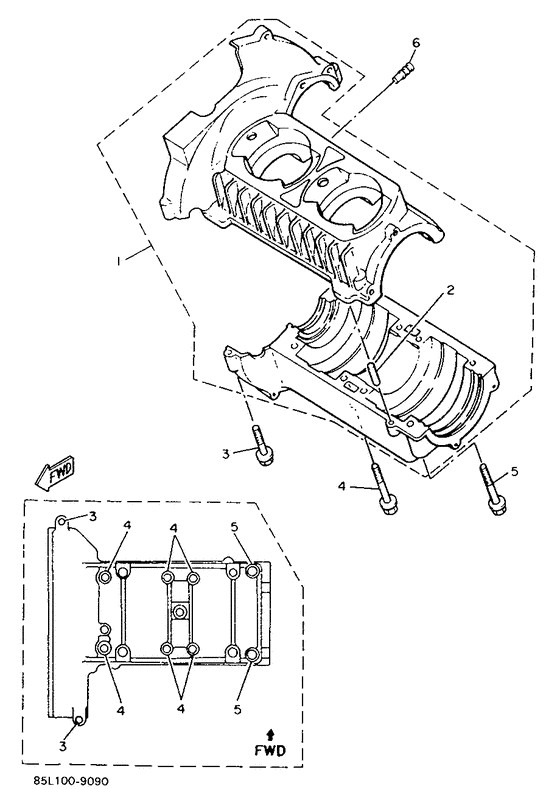

Crankcase Diagram Yamaha CS340 Ovation
- Model code
- 88E1
- Engine Capacity
- 337
- Year
- 1991
- Sales region
- North America (999)
- Model
- Ovation
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8L9-15100-01-00
Crankcase Assy
|
8L9-15100-01-00 |
— | ||
|
02
|
02
93605-10108-00 Pin, Dowel |
93605-10108-00 |
from US $0.99 |
||
|
03
|
03
95811-08040-00 Bolt, Flange |
95811-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
03
|
03
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
04
|
04
95822-08060-00 Bolt, Flange |
95822-08060-00 |
from US $1.07 |
||
| replacement | |||||
|
04
|
04
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
05
|
05
95822-08070-00 Bolt, Flange |
95822-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
06
|
06
8G8-24461-00-00 Pipe, Joint |
8G8-24461-00-00 |
from US $12.98 |
||
