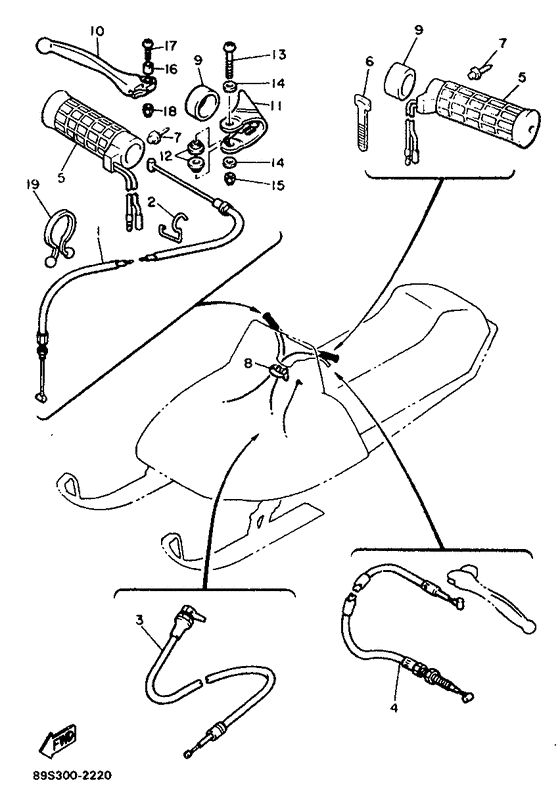

Control cable Diagram Yamaha CS340 Ovation
- Model code
- 89S1
- Engine Capacity
- 337
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Yamaha Black (YB; 0033)
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
85L-26311-00-00 Cable, Throttle 1 |
85L-26311-00-00 |
US $30.20 |
||
| replacement | |||||
|
01
|
01
85L-26311-01-00
Cable, Throttle 1
|
85L-26311-01-00 |
— | ||
|
02
|
02
90468-10017-00
Clip (821-26391-00)
|
90468-10017-00 |
— | ||
|
03
|
03
89X-26331-00-00
Cable, Starter 1
|
89X-26331-00-00 |
— | ||
|
04
|
04
85M-26340-00-00
Cable, Brake
|
85M-26340-00-00 |
— | ||
|
05
|
05
88T-26240-00-00 88T Grip Black 1 Pc |
88T-26240-00-00 |
US $95.05 |
||
| replacements | |||||
|
05
|
05
88T-26240-85-BK
FOOTREST, REAR 1
|
88T-26240-85-BK |
— | ||
|
05
|
05
999-99034-93-00 Grip Assy |
999-99034-93-00 |
from US $95.05 |
||
|
06
|
06
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
07
|
07
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
08
|
08
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
08
|
08
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
08
|
08
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
09
|
09
90387-22726-00
Collar
|
90387-22726-00 |
— | ||
|
10
|
10
8M5-83922-00-00
Lever 2
|
8M5-83922-00-00 |
— | ||
|
11
|
11
8K1-42138-00-00 Lever, Throttle |
8K1-42138-00-00 |
US $37.04 |
||
|
12
|
12
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
12
|
12
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
13
|
13
985-06060-50-00
Screw Pan Head
|
985-06060-50-00 |
— | ||
| replacement | |||||
|
13
|
13
98507-06050-00 Screw, Pan Head |
98507-06050-00 |
from US $1.66 |
||
|
14
|
14
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
95706-06300-00 Nut, Nylon |
95706-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
16
|
16
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
17
|
17
901-57050-55-00 Screw, Pan Head(8W1) |
901-57050-55-00 |
US $1.73 |
||
|
18
|
18
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
19
|
19
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
