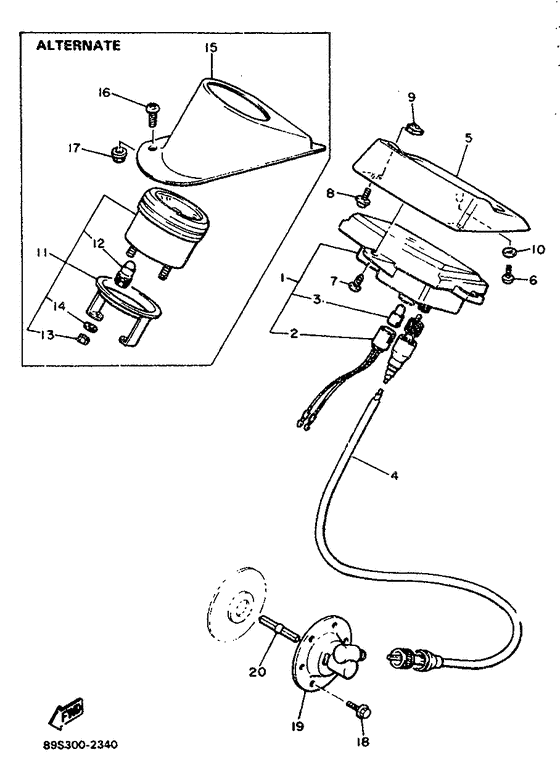

Meter Diagram Yamaha CS340 Ovation
- Model code
- 89S1
- Engine Capacity
- 337
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Yamaha Black (YB; 0033)
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
85N-83510-20-00
Speedometer Assy
For km/h |
85N-83510-20-00 |
— | ||
|
02
|
02
86N-83509-00-00
Socket cord assy
|
86N-83509-00-00 |
— | ||
|
03
|
03
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
03
|
03
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
04
|
04
85N-83550-01-00 Speedometer Cable Assembly |
85N-83550-01-00 |
US $57.11 |
||
|
05
|
05
87D-83558-00-00
End, nipple
|
87D-83558-00-00 |
— | ||
|
06
|
06
98903-05016-00
Screw, Bind
|
98903-05016-00 |
— | ||
| replacements | |||||
|
06
|
06
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
06
|
06
98902-05016-00 Screw, Bind (8K2) |
98902-05016-00 |
from US $1.56 |
||
|
07
|
07
90167-05030-00 Screw, Tapping |
90167-05030-00 |
from US $1.70 |
||
|
08
|
08
90159-05137-00 Screw, With Washer |
90159-05137-00 |
US $2.20 |
||
| replacement | |||||
|
08
|
08
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
09
|
09
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
09
|
09
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
10
|
10
90201-06725-00
Washer, plate
|
90201-06725-00 |
— | ||
|
11
|
11
85L-83540-00-00 Tachometer AssyAp |
85L-83540-00-00 |
from US $371.01 |
||
|
12
|
12
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
12
|
12
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
13
|
13
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
92990-U5100-00
Washer spring
|
92990-U5100-00 |
— | ||
|
15
|
15
85N-8354E-00-00
Panel, Tachometer 2
Ap |
85N-8354E-00-00 |
— | ||
|
16
|
16
989-06060-10-00
Screw, Bind
Ap |
989-06060-10-00 |
— | ||
| replacement | |||||
|
16
|
16
989-07060-10-00 Screw, BindingAp |
989-07060-10-00 |
from US $1.56 |
||
|
17
|
17
95706-06500-00 Nut, With WasherAp |
95706-06500-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95707-06500-00 Nut, FlangeAp |
95707-06500-00 |
from US $1.12 |
||
|
18
|
18
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
18
|
18
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
18
|
18
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
19
|
19
8Y1-47700-00-00 Meter Gear Housing Comp |
8Y1-47700-00-00 |
from US $60.41 |
||
|
20
|
20
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $3.72 |
||
