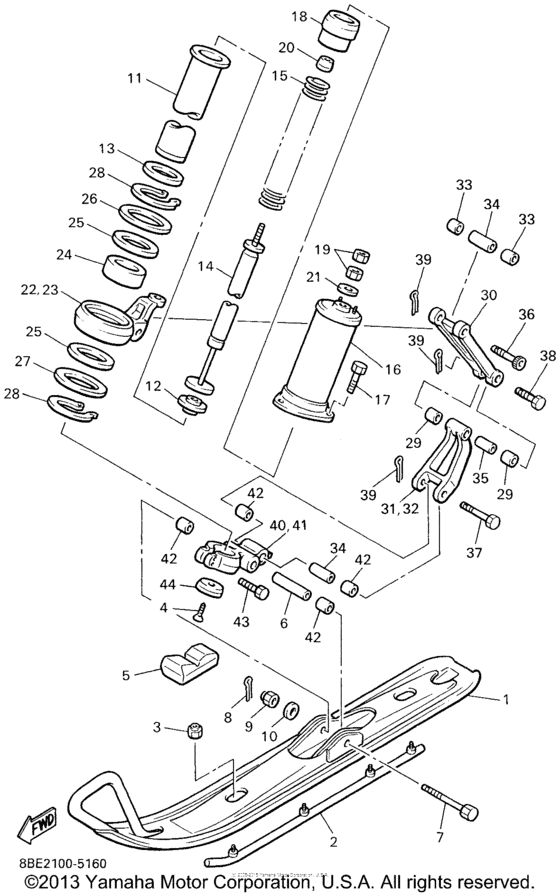

Ski Diagram Yamaha CS340 Ovation
- Model code
- CS340
- Engine Capacity
- 337
- Year
- 2000
- Sales region
- USA
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85L-23710-00-00 Ski Comp. 1 |
85L-23710-00-00 |
from US $276.09 |
||
|
2
|
2
8M6-23731-01-00 Runner, 1 (8M6-23731-01-00)8M6-23731-01-00 |
8M6-23731-01-00 |
US $63.14 |
||
| replacements | |||||
|
2
|
2
VMX-23731-01-XX
Runner, 1 (8M6-23731-01-00)
8M6-23731-01-00 |
VMX-23731-01-XX |
— | ||
|
2
|
2
8M6-23731-02-XX
Runner 1 :sm
8M6-23731-01-00 |
8M6-23731-02-XX |
— | ||
|
3
|
3
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
3
|
3
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
4
|
4
90151-06042-00 Screw, Flat Head |
90151-06042-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
5
|
5
85L-23743-00-00
Stopper 1
|
85L-23743-00-00 |
— | ||
|
6
|
6
90387-106J3-00 Collar |
90387-106J3-00 |
from US $5.13 |
||
|
7
|
7
90105-10438-00 Bolt, Flange |
90105-10438-00 |
from US $10.26 |
||
|
8
|
8
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
8
|
8
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
9
|
9
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.70 |
||
|
10
|
10
90201-10430-00 Washer, Plate |
90201-10430-00 |
from US $2.77 |
||
| replacement | |||||
|
10
|
10
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.77 |
||
|
11
|
11
85L-22471-00-00 Cylinder, Shock Absorber |
85L-22471-00-00 |
from US $165.10 |
||
|
12
|
12
81E-23779-00-00
Washer
|
81E-23779-00-00 |
— | ||
|
13
|
13
85L-22494-00-00 Rebound, Stop |
85L-22494-00-00 |
US $7.72 |
||
|
14
|
14
85L-2376A-00-00 Absorber Assembly 1 |
85L-2376A-00-00 |
US $189.61 |
||
|
15
|
15
90501-653F9-00 Spring, Compression |
90501-653F9-00 |
US $80.08 |
||
|
16
|
16
8V0-2376J-00-00
Holder, Absorber
|
8V0-2376J-00-00 |
— | ||
|
17
|
17
970-27060-20-00
Bolt
|
970-27060-20-00 |
— | ||
| replacement | |||||
|
17
|
17
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
18
|
18
85L-22493-00-00
Bump, Stop
|
85L-22493-00-00 |
— | ||
|
19
|
19
95307-08700-00 Nut |
95307-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.36 |
||
|
20
|
20
8V0-2386J-00-00
Cushion
|
8V0-2386J-00-00 |
— | ||
|
21
|
21
92907-08200-00 Washer |
92907-08200-00 |
from US $1.36 |
||
|
22
|
22
85L-23851-00-00 Arm, Outside 1 |
85L-23851-00-00 |
US $129.02 |
||
|
23
|
23
85L-23852-00-00 Arm, Outside 2 |
85L-23852-00-00 |
US $129.02 |
||
|
24
|
24
90384-63188-00
Bush, Bimetal Formed
|
90384-63188-00 |
— | ||
|
25
|
25
93109-63044-00 Oil Seal |
93109-63044-00 |
US $7.79 |
||
|
26
|
26
90201-637F3-00 Washer, Plate |
90201-637F3-00 |
US $7.79 |
||
|
27
|
27
902-01635-H7-00
Washer, Plate
|
902-01635-H7-00 |
— | ||
|
28
|
28
934-10630-66-00 Circlip |
934-10630-66-00 |
US $8.19 |
||
|
29
|
29
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.16 |
||
|
30
|
30
8V0-2382E-01-00
Arm, Front 1
|
8V0-2382E-01-00 |
— | ||
|
31
|
31
8V0-2382F-02-00 Arm, Front 2 (L, H)L, H |
8V0-2382F-02-00 |
US $77.56 |
||
|
32
|
32
8V0-2383F-02-00 Arm, Front4 (R, H)H |
8V0-2383F-02-00 |
US $71.14 |
||
|
33
|
33
903-84140-96-00 Bush, Bimetal Formed |
903-84140-96-00 |
from US $4.43 |
||
|
34
|
34
90387-101Y9-00 Collar |
90387-101Y9-00 |
from US $5.13 |
||
|
35
|
35
90387-100A4-00 Collar |
90387-100A4-00 |
from US $4.58 |
||
|
36
|
36
90110-10213-00 Bolt, Hex Socket Head |
90110-10213-00 |
from US $10.63 |
||
| replacement | |||||
|
36
|
36
90110-10173-00 Bolt, Hex Socket Head |
90110-10173-00 |
from US $10.83 |
||
|
37
|
37
90102-10081-00
Bolt, With Hole
|
90102-10081-00 |
— | ||
| replacement | |||||
|
37
|
37
90102-10055-00
Bolt, With Hole
|
90102-10055-00 |
— | ||
|
38
|
38
90102-10082-00 Bolt, With Hole |
90102-10082-00 |
US $9.13 |
||
| replacement | |||||
|
38
|
38
90102-10054-00
Bolt, With Hole
|
90102-10054-00 |
— | ||
|
39
|
39
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
39
|
39
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
40
|
40
81E-2376E-00-00 Bracket 1 (L, H)L, H |
81E-2376E-00-00 |
US $226.15 |
||
|
41
|
41
81E-2377E-00-00 Bracket 2 (R, H)R, H |
81E-2377E-00-00 |
US $221.72 |
||
|
42
|
42
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.16 |
||
|
43
|
43
97027-08030-00 Bolt |
97027-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
43
|
43
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
44
|
44
81E-23737-00-00 Washer 1 |
81E-23737-00-00 |
from US $9.63 |
||
