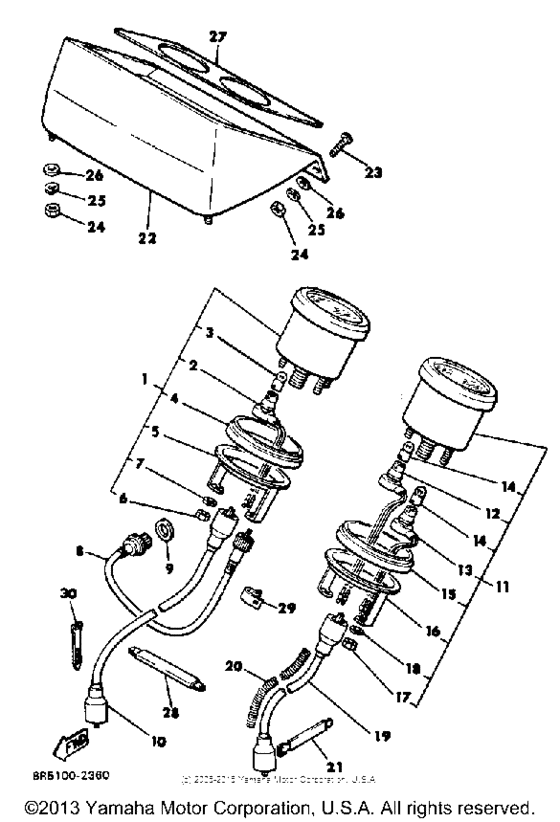

Speedometer & tachometer Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1983
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87R-83510-40-00 Speedometer Assy |
87R-83510-40-00 |
from US $112.46 |
||
| replacement | |||||
|
1
|
1
88T-83510-40-00
Speedometer Assy (Mile/h)
|
88T-83510-40-00 |
— | ||
|
2
|
2
861-83536-40-00
Socket, Meter
|
861-83536-40-00 |
— | ||
|
3
|
3
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
4
|
4
8G6-83523-00-00 Damper |
8G6-83523-00-00 |
from US $10.64 |
||
|
5
|
5
8K1-83519-00-00 Bracket, Meter |
8K1-83519-00-00 |
US $16.72 |
||
|
6
|
6
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
8K1-83603-01-00 Trip Meter Cable Assy |
8K1-83603-01-00 |
from US $52.36 |
||
|
9
|
9
902-02141-22-00
Washer, Plate
|
902-02141-22-00 |
— | ||
|
10
|
10
8F3-83550-01-00
Speedometer Cable
|
8F3-83550-01-00 |
— | ||
|
11
|
11
8R5-83540-00-00
Tachometer Assembly
|
8R5-83540-00-00 |
— | ||
|
12
|
12
8L6-83536-00-00
Socket, Meter
|
8L6-83536-00-00 |
— | ||
|
13
|
13
861-83536-40-00
Socket, Meter
|
861-83536-40-00 |
— | ||
|
14
|
14
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
14
|
14
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
15
|
15
8G6-83523-00-00 Damper |
8G6-83523-00-00 |
from US $10.64 |
||
|
16
|
16
8G6-83519-00-00 Bracket, Meter |
8G6-83519-00-00 |
from US $17.95 |
||
|
17
|
17
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
18
|
18
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
19
|
19
8G6-83560-01-00
Tachometer Cable
|
8G6-83560-01-00 |
— | ||
|
20
|
20
8L6-83557-00-00
Socket, Oil
|
8L6-83557-00-00 |
— | ||
|
21
|
21
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
22
|
22
8G5-83611-00-00 Panel, Meter |
8G5-83611-00-00 |
from US $105.34 |
||
|
23
|
23
98906-05020-00 Screw, Bsnd(8E6) |
98906-05020-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
98907-05020-00 Screw, Binding |
98907-05020-00 |
from US $1.66 |
||
|
24
|
24
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
25
|
25
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
26
|
26
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
27
|
27
8L6-83612-00-00
Cover, Meter Panel
|
8L6-83612-00-00 |
— | ||
|
28
|
28
904-65051-28-00
Clamp
|
904-65051-28-00 |
— | ||
|
29
|
29
90465-06013-00 Clamp |
90465-06013-00 |
US $1.71 |
||
|
30
|
30
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
