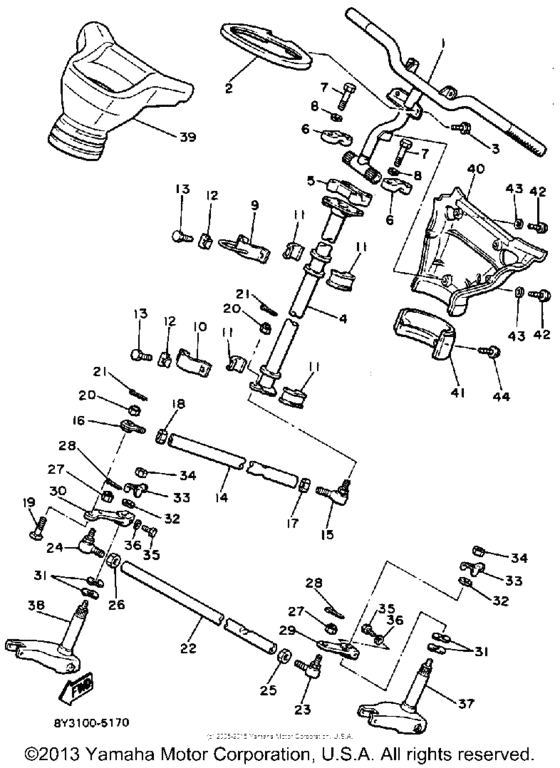

Steering Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1985
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8Y3-23811-00-00 Column, Steering |
8Y3-23811-00-00 |
US $149.09 |
||
| replacement | |||||
|
1
|
1
80Y-23811-00-00
Column, Steering
|
80Y-23811-00-00 |
— | ||
|
2
|
2
8V0-23878-00-00 Bracket 1010 |
8V0-23878-00-00 |
from US $28.80 |
||
|
3
|
3
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
3
|
3
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
4
|
4
8W6-23813-00-00
Column, Steering 2
|
8W6-23813-00-00 |
— | ||
|
5
|
5
164-23441-00-98
Holder, Handle Under (8G5-23814
8G5-23814 |
164-23441-00-98 |
— | ||
| replacement | |||||
|
5
|
5
164-23441-01-98 Handle, Holder8G5-23814 |
164-23441-01-98 |
from US $47.25 |
||
|
6
|
6
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
7
|
7
97321-08055-00 Bolt, Hexagon661 |
97321-08055-00 |
from US $2.66 |
||
| replacement | |||||
|
7
|
7
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
8Y4-23872-00-00 Holder, Bearing |
8Y4-23872-00-00 |
from US $14.31 |
||
| replacement | |||||
|
9
|
9
84M-23872-00-00 Holder, Bearing |
84M-23872-00-00 |
from US $14.31 |
||
|
10
|
10
84M-23868-00-00 Bracket, Steering Lower |
84M-23868-00-00 |
from US $14.31 |
||
| replacement | |||||
|
10
|
10
84M-23872-00-00 Holder, Bearing |
84M-23872-00-00 |
from US $14.31 |
||
|
11
|
11
8F3-23812-00-00 Bearing, Steering |
8F3-23812-00-00 |
from US $7.66 |
||
|
12
|
12
90215-08262-00 Washer, Lock 1 |
90215-08262-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
8AC-23894-01-00 Washer, Lock 1 |
8AC-23894-01-00 |
from US $1.98 |
||
|
13
|
13
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
13
|
13
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
14
|
14
8G8-23821-00-00 Rod, Steering Relay |
8G8-23821-00-00 |
US $31.79 |
||
| replacement | |||||
|
14
|
14
87F-23821-00-00 Rod, Steering Relay |
87F-23821-00-00 |
US $31.79 |
||
|
15
|
15
87S-23847-00-00 Joint, Universal 3 |
87S-23847-00-00 |
from US $21.11 |
||
| replacement | |||||
|
15
|
15
87S-23847-01-00 Joint, Universal 3 |
87S-23847-01-00 |
from US $21.08 |
||
|
16
|
16
87S-23847-00-00 Joint, Universal 3 |
87S-23847-00-00 |
from US $21.11 |
||
| replacement | |||||
|
16
|
16
87S-23847-01-00 Joint, Universal 3 |
87S-23847-01-00 |
from US $21.08 |
||
|
17
|
17
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
17
|
17
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
18
|
18
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.66 |
||
|
19
|
19
90101-08263-00
Bolt
|
90101-08263-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
95701-10300-00 Nut, With Washer |
95701-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
20
|
20
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.70 |
||
|
21
|
21
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
22
|
22
8G8-23831-00-00 Rod, Tie |
8G8-23831-00-00 |
from US $37.26 |
||
|
23
|
23
86X-23841-00-00 Joint, Universal 1 |
86X-23841-00-00 |
from US $33.68 |
||
|
24
|
24
86X-23845-00-00 Joint, Universal 2 |
86X-23845-00-00 |
from US $36.20 |
||
|
25
|
25
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
25
|
25
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
26
|
26
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.66 |
||
|
27
|
27
95701-10300-00 Nut, With Washer |
95701-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
27
|
27
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.70 |
||
|
28
|
28
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
29
|
29
8F2-23851-00-00
Arm, Outside 1
|
8F2-23851-00-00 |
— | ||
|
30
|
30
8F3-23852-00-00 Arm, Outside 2 |
8F3-23852-00-00 |
US $46.08 |
||
|
31
|
31
90206-20037-00 Washer, Wave |
90206-20037-00 |
from US $2.13 |
||
|
32
|
32
90201-10752-00 Washer, Plate |
90201-10752-00 |
from US $3.54 |
||
| replacement | |||||
|
32
|
32
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.70 |
||
|
33
|
33
90215-10096-00
Washer, Lock
|
90215-10096-00 |
— | ||
|
34
|
34
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
35
|
35
97001-08025-00 Bolt (1Nv) |
97001-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
35
|
35
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
36
|
36
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
37
|
37
83T-23853-00-00
Column, Ski 1
|
83T-23853-00-00 |
— | ||
|
38
|
38
83T-23854-00-00
Column, Ski 2
|
83T-23854-00-00 |
— | ||
|
39
|
39
8Y3-23815-00-00
Pad, Steering
|
8Y3-23815-00-00 |
— | ||
|
40
|
40
8Y3-23817-00-00
Pad, Steering
|
8Y3-23817-00-00 |
— | ||
|
41
|
41
8Y3-23818-00-00 Cover, Steering |
8Y3-23818-00-00 |
US $31.31 |
||
| replacement | |||||
|
41
|
41
8Y0-23818-00-00 Cover, Steering |
8Y0-23818-00-00 |
from US $20.70 |
||
|
42
|
42
90159-05096-00 Screw, With Washer |
90159-05096-00 |
from US $2.27 |
||
| replacement | |||||
|
42
|
42
976-07051-12-00 Screw,with Washer |
976-07051-12-00 |
from US $2.27 |
||
|
43
|
43
90201-05721-00 Washer, Plate |
90201-05721-00 |
from US $1.98 |
||
| replacement | |||||
|
43
|
43
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
44
|
44
90159-04095-00
Screw, Pan Head With
|
90159-04095-00 |
— | ||
| replacement | |||||
|
44
|
44
976-07043-14-00
Screw, Pan Head With Washer
|
976-07043-14-00 |
— | ||
