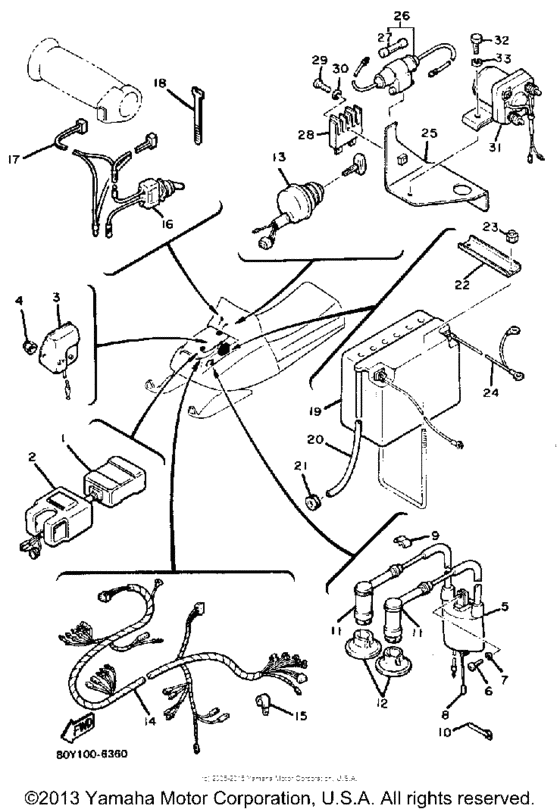

Electrical (1) Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1986
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8V0-85540-21-00
C.d.i. Unit Assembly
|
8V0-85540-21-00 |
— | ||
|
2
|
2
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
3
|
3
82F-81910-A0-00 Voltage Regulator Assy |
82F-81910-A0-00 |
from US $42.69 |
||
| replacement | |||||
|
3
|
3
7XE-81910-00-00 Voltage Regulator As |
7XE-81910-00-00 |
from US $42.69 |
||
|
4
|
4
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
5
|
5
8W3-82310-T0-00 Ignition Coil Assembly |
8W3-82310-T0-00 |
from US $81.05 |
||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
87D-82318-00-00
Wire, Sub-Lead
|
87D-82318-00-00 |
— | ||
| replacement | |||||
|
8
|
8
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
|
9
|
9
8W6-82355-00-00 Grommet 1 |
8W6-82355-00-00 |
from US $4.56 |
||
|
10
|
10
J45-83936-00-00 Band Switch Cord Assy |
J45-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
8J0-82370-10-00
Plug Cap Assembly
|
8J0-82370-10-00 |
— | ||
|
12
|
12
8G8-82372-00-00
Seal, Plug Cap
|
8G8-82372-00-00 |
— | ||
|
13
|
13
8J9-82508-20-00 Main Switch Asy |
8J9-82508-20-00 |
US $113.47 |
||
| replacement | |||||
|
13
|
13
8J9-82510-20-00 Main Switch Assy |
8J9-82510-20-00 |
US $113.38 |
||
|
14
|
14
80Y-82590-20-00
Wire Harness Assembly
|
80Y-82590-20-00 |
— | ||
|
15
|
15
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
16
|
16
82J-82917-00-00 Switch |
82J-82917-00-00 |
from US $107.28 |
||
|
17
|
17
80X-82318-00-00
Wire, Sub-Lead
|
80X-82318-00-00 |
— | ||
|
18
|
18
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
19
|
19
BTY-YB14L-A2-00
Yb14La2 Yuasa Batte
|
BTY-YB14L-A2-00 |
— | ||
| replacement | |||||
|
19
|
19
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
|
YB1-4LA20-00-00 |
— | ||
|
20
|
20
90445-08417-00 Hose (L270) |
90445-08417-00 |
from US $5.10 |
||
| replacement | |||||
|
20
|
20
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.42 |
||
|
21
|
21
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.94 |
||
|
22
|
22
8J4-82136-00-00
Plate, Battery Fitting
|
8J4-82136-00-00 |
— | ||
|
23
|
23
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
24
|
24
8J4-82115-01-00
Wire Plus Lead
|
8J4-82115-01-00 |
— | ||
| replacement | |||||
|
24
|
24
84N-82115-00-00
Wire, Plus Lead
|
84N-82115-00-00 |
— | ||
|
25
|
25
8W8-81975-00-00
Plate, Rectifr Ftng
|
8W8-81975-00-00 |
— | ||
|
26
|
26
2J2-82150-10-00
Fuse Holder Assembly
|
2J2-82150-10-00 |
— | ||
|
27
|
27
682-82151-00-00 Fuse |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
27
|
27
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
27
|
27
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
28
|
28
1Y8-81970-60-00
Rectifier Assy
|
1Y8-81970-60-00 |
— | ||
| replacement | |||||
|
28
|
28
3HB-H1970-01-00
Rectifier Assy (Rxki
|
3HB-H1970-01-00 |
— | ||
|
29
|
29
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
8J9-81940-10-00 Starter Relay Assy |
8J9-81940-10-00 |
US $149 |
||
|
32
|
32
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
32
|
32
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
