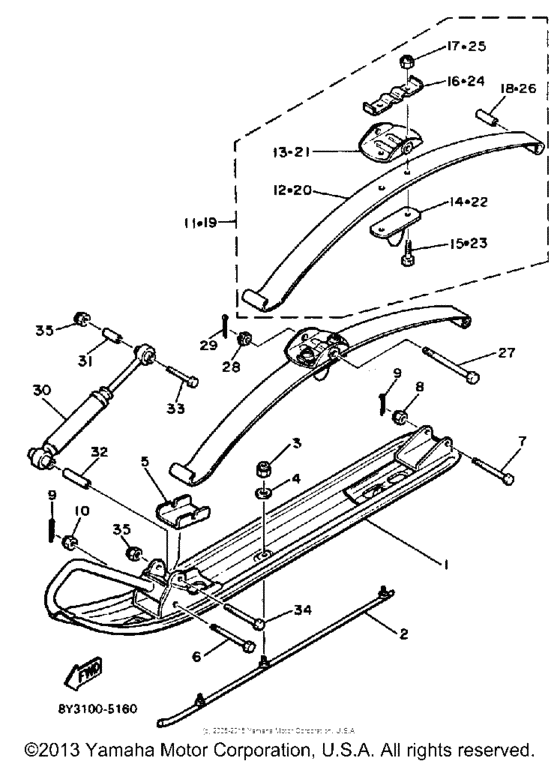

Ski Diagram Yamaha EC340 Excel III
- Model code
- EC340
- Engine Capacity
- 340
- Year
- 1986
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81L-23710-00-00 Ski 1 |
81L-23710-00-00 |
US $131.83 |
||
|
2
|
2
8Y3-23731-00-XX Ski Runner, 1 (8Y3-23731-00)8Y3-23731-00 |
8Y3-23731-00-XX |
US $11.93 |
||
|
3
|
3
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
4
|
4
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
5
|
5
8K4-23735-00-00
Plate, Wear 1
|
8K4-23735-00-00 |
— | ||
|
6
|
6
90102-08028-00 Bolt, With Hole |
90102-08028-00 |
from US $4.53 |
||
|
7
|
7
90102-08027-00 Bolt, With Hole |
90102-08027-00 |
from US $5.95 |
||
|
8
|
8
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
8
|
8
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
9
|
9
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
10
|
10
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
10
|
10
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
11
|
11
8Y3-23760-00-00
Spring Assembly 1
|
8Y3-23760-00-00 |
— | ||
|
12
|
12
8Y3-23761-00-00
Leaf 1
|
8Y3-23761-00-00 |
— | ||
|
13
|
13
8G6-23766-00-00 Saddle 1 |
8G6-23766-00-00 |
from US $37.30 |
||
|
14
|
14
878-23768-00-00 Seat, Spring 1 |
878-23768-00-00 |
US $34.92 |
||
|
15
|
15
90109-105E7-00
Bolt(83T)
|
90109-105E7-00 |
— | ||
|
16
|
16
90215-10155-00 Washer, Lock |
90215-10155-00 |
from US $9.78 |
||
|
17
|
17
90185-10085-00 Nut, Self-Locking |
90185-10085-00 |
from US $1.98 |
||
|
18
|
18
90387-08478-00 Collar |
90387-08478-00 |
from US $1.90 |
||
|
19
|
19
8Y3-23770-00-00
Spring Assembly 2
|
8Y3-23770-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
8Y3-23761-00-00
Leaf 1
|
8Y3-23761-00-00 |
— | ||
|
21
|
21
8G6-23766-00-00 Saddle 1 |
8G6-23766-00-00 |
from US $37.30 |
||
|
22
|
22
878-23768-00-00 Seat, Spring 1 |
878-23768-00-00 |
US $34.92 |
||
|
23
|
23
90109-105E7-00
Bolt(83T)
|
90109-105E7-00 |
— | ||
|
24
|
24
90215-10155-00 Washer, Lock |
90215-10155-00 |
from US $9.78 |
||
|
25
|
25
90185-10085-00 Nut, Self-Locking |
90185-10085-00 |
from US $1.98 |
||
|
26
|
26
90387-08478-00 Collar |
90387-08478-00 |
from US $1.90 |
||
|
27
|
27
90102-12030-00 Bolt, With Hole |
90102-12030-00 |
from US $7.93 |
||
|
28
|
28
90171-12040-00 Nut |
90171-12040-00 |
from US $3.97 |
||
| replacement | |||||
|
28
|
28
95307-12900-00 Nut, Castle |
95307-12900-00 |
from US $3.97 |
||
|
29
|
29
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
29
|
29
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
30
|
30
8V8-23350-00-00
Shock Absorber Assembly
|
8V8-23350-00-00 |
— | ||
|
31
|
31
90387-08262-00 Collar |
90387-08262-00 |
from US $3.97 |
||
|
32
|
32
90387-08224-00 Collar |
90387-08224-00 |
from US $2.83 |
||
|
33
|
33
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
33
|
33
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
34
|
34
97013-08075-00 Bolt (6K8) |
97013-08075-00 |
from US $6.09 |
||
|
35
|
35
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
35
|
35
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
