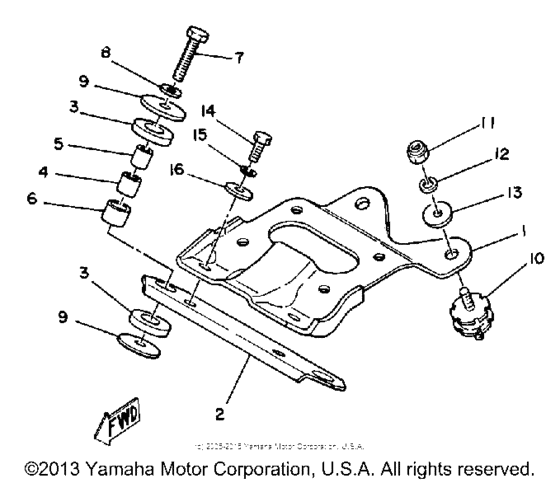

Engine bracket Diagram Yamaha ET300
- Model code
- ET300
- Engine Capacity
- 300
- Year
- 1981
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8G8-21411-00-00
Bracket, Engine 1
|
8G8-21411-00-00 |
— | ||
|
2
|
2
8G8-21419-00-00
Bracket, Engine 2
|
8G8-21419-00-00 |
— | ||
|
3
|
3
8A5-21485-00-00 Damper, Rubber 1 |
8A5-21485-00-00 |
from US $11.60 |
||
| replacement | |||||
|
3
|
3
8V0-21485-00-00 Damper, Rubber 1 |
8V0-21485-00-00 |
from US $11.60 |
||
|
4
|
4
90385-15025-00
Bush, Spec''l Rubber
|
90385-15025-00 |
— | ||
|
5
|
5
90387-10514-00
Collar
|
90387-10514-00 |
— | ||
|
6
|
6
90387-21515-00 Collar |
90387-21515-00 |
US $7.72 |
||
|
7
|
7
97313-10050-00 Bolt,hexagon(676) |
97313-10050-00 |
US $5.74 |
||
| replacement | |||||
|
7
|
7
970-13100-50-00
Bolt, Hexagon
|
970-13100-50-00 |
— | ||
|
8
|
8
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
9
|
9
90201-10151-00 Washer, Plate |
90201-10151-00 |
from US $2.13 |
||
|
10
|
10
8F3-21486-00-00 Damper 2 |
8F3-21486-00-00 |
from US $48.09 |
||
|
11
|
11
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2.36 |
||
|
12
|
12
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
13
|
13
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
14
|
14
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
14
|
14
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
15
|
15
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
16
|
16
90201-10639-00 Washer, Plate |
90201-10639-00 |
from US $6.09 |
||
