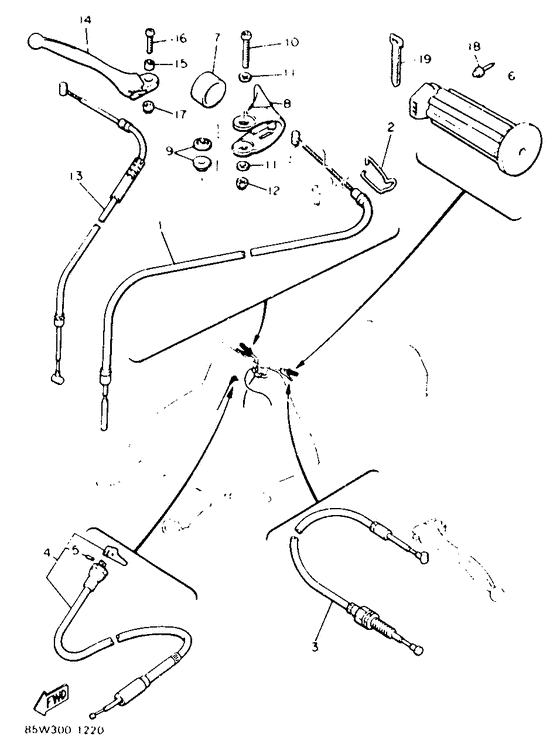

Control cable Diagram Yamaha ET400
- Model code
- 85W3
- Engine Capacity
- 400
- Year
- 1991
- Sales region
- Europe (General) (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8X0-26311-01-00 Cable, Throttle 1 (82M-26311-00 |
8X0-26311-01-00 |
from US $36.11 |
||
| replacement | |||||
|
01
|
01
85F-26311-00-00 Cable, Throttle 1 (82M-26311-00 |
85F-26311-00-00 |
from US $41.86 |
||
|
02
|
02
90467-10017-00
Clip
|
90467-10017-00 |
— | ||
|
03
|
03
8X2-26340-00-00
Cable, Brake
|
8X2-26340-00-00 |
— | ||
| replacements | |||||
|
03
|
03
88L-26340-01-00
Brake Cable
|
88L-26340-01-00 |
— | ||
|
03
|
03
88L-26340-00-00
Brake W1Re Assy
|
88L-26340-00-00 |
— | ||
|
04
|
04
8W6-26331-01-00 Cable, Starter 1 |
8W6-26331-01-00 |
from US $51.70 |
||
| replacement | |||||
|
04
|
04
8W6-26331-02-00 |
8W6-26331-02-00 |
US $82.03 |
||
|
05
|
05
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
05
|
05
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
06
|
06
80K-2626A-00-00 88T Grip Black 1 Pc |
80K-2626A-00-00 |
US $95.05 |
||
| replacements | |||||
|
06
|
06
88T-26240-85-BK
FOOTREST, REAR 1
|
88T-26240-85-BK |
— | ||
|
06
|
06
999-99034-93-00 Grip Assy |
999-99034-93-00 |
from US $95.05 |
||
|
06
|
06
88T-26240-00-00 88T Grip Black 1 Pc |
88T-26240-00-00 |
US $95.05 |
||
|
07
|
07
90387-22726-00
Collar
|
90387-22726-00 |
— | ||
|
08
|
08
8K1-42138-00-00 Lever, Throttle |
8K1-42138-00-00 |
US $37.04 |
||
|
09
|
09
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
09
|
09
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
10
|
10
92506-06050-00 Screw |
92506-06050-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
98507-06050-00 Screw, Pan Head |
98507-06050-00 |
from US $1.66 |
||
|
11
|
11
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
95706-06300-00 Nut, Nylon |
95706-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
13
|
13
8X2-26350-00-00
Cable, Brake
|
8X2-26350-00-00 |
— | ||
|
14
|
14
8M5-08392-20-00
Lever 2
|
8M5-08392-20-00 |
— | ||
|
15
|
15
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
16
|
16
901-57050-55-00 Screw, Pan Head(8W1) |
901-57050-55-00 |
US $1.73 |
||
|
17
|
17
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
18
|
18
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
19
|
19
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
