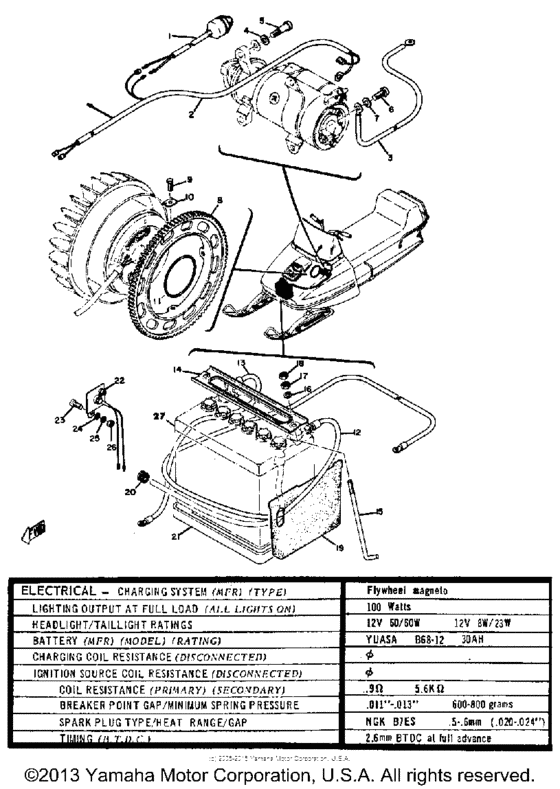

Electrical (1) Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
811-83970-00-00
Starter Switch Assembly
|
811-83970-00-00 |
— | ||
|
2
|
2
852-82127-00-00
Wire, Lead 2
|
852-82127-00-00 |
— | ||
|
3
|
3
842-82117-00-00
Wire, Lead
|
842-82117-00-00 |
— | ||
|
4
|
4
901-49080-56-00 Screw, Spec''l Shape |
901-49080-56-00 |
US $1.84 |
||
|
5
|
5
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
6
|
6
985-01080-20-00 Screw, Pan Head (92501-08020) |
985-01080-20-00 |
from US $3.58 |
||
| replacement | |||||
|
6
|
6
98580-08020-00 Screw, Pan Head |
98580-08020-00 |
from US $4.68 |
||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
901-06080-04-00
Bolt, Dome Head
|
901-06080-04-00 |
— | ||
|
10
|
10
902-15080-71-00
Washer, Lock
|
902-15080-71-00 |
— | ||
|
11
|
11
932-10690-58-00 O-Ring (1.9-68.6)1.9-68.6 |
932-10690-58-00 |
US $1.67 |
||
|
12
|
12
824-82115-00-00 Wire, Plus Lead |
824-82115-00-00 |
US $36.34 |
||
|
13
|
13
822-82116-00-00
Wire, Minus Lead
|
822-82116-00-00 |
— | ||
|
14
|
14
822-82136-00-00
Plate, Batt Fitting
|
822-82136-00-00 |
— | ||
|
15
|
15
901-49060-24-00
Screw, Spec''l Shape
|
901-49060-24-00 |
— | ||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
18
|
18
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
18
|
18
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
19
|
19
822-82118-00-00 Seal, Battery |
822-82118-00-00 |
US $6.97 |
||
|
20
|
20
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.94 |
||
|
21
|
21
807-82122-00-00 Seat, Battery |
807-82122-00-00 |
US $8.06 |
||
|
22
|
22
812-81970-41-00
Rectifier Assembly
|
812-81970-41-00 |
— | ||
|
23
|
23
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
23
|
23
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
27
|
27
807-82110-80-00
Smb Battery B68-12
B68-12 |
807-82110-80-00 |
— | ||
