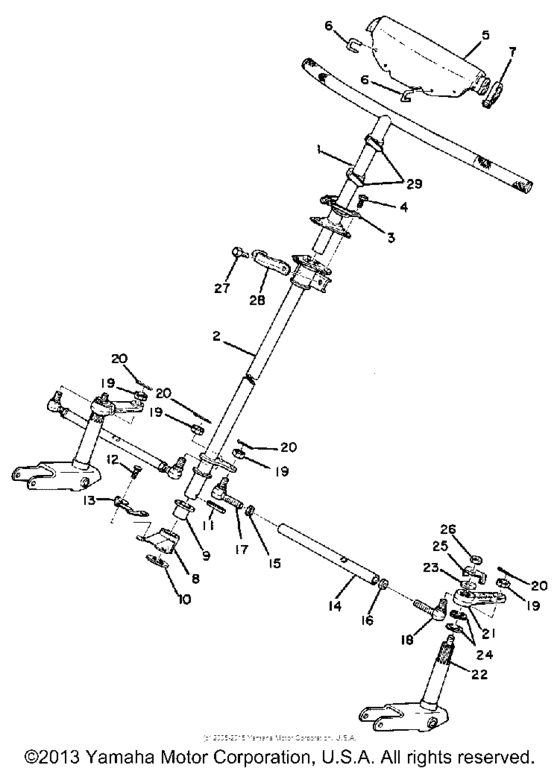

Steering Diagram Yamaha EX340 Exciter
- Model code
- EX340
- Engine Capacity
- 340
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8E7-23811-00-00
Column, Steering
|
8E7-23811-00-00 |
— | ||
|
2
|
2
8E7-23813-00-00
Column, Steering 2
|
8E7-23813-00-00 |
— | ||
|
3
|
3
8A5-23894-00-00
Washer, Lock 1
|
8A5-23894-00-00 |
— | ||
|
4
|
4
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
5
|
5
878-23815-01-00
Pad, Steering (878-23815-00)
878-23815-00 |
878-23815-01-00 |
— | ||
|
6
|
6
904-65050-24-00
Clamp
|
904-65050-24-00 |
— | ||
|
7
|
7
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
8
|
8
8E7-23868-00-00
Bracket, Strg Lowerlower
|
8E7-23868-00-00 |
— | ||
|
9
|
9
8E7-23875-00-00
Bearing, Strg Lowerlower
|
8E7-23875-00-00 |
— | ||
|
10
|
10
856-23812-00-00
Bearing, Steering
|
856-23812-00-00 |
— | ||
|
11
|
11
916-09600-40-00
Pin, Spring
|
916-09600-40-00 |
— | ||
|
12
|
12
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
12
|
12
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
13
|
13
8E7-23895-00-00
Washer, Lock 2
|
8E7-23895-00-00 |
— | ||
|
14
|
14
888-23821-00-00 Rod, Steering Relay |
888-23821-00-00 |
US $13.77 |
||
|
15
|
15
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
15
|
15
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
16
|
16
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.66 |
||
|
17
|
17
888-23841-91-00
Joint, Universal 1
|
888-23841-91-00 |
— | ||
|
18
|
18
888-23845-91-00
Joint, Universal 2
|
888-23845-91-00 |
— | ||
|
19
|
19
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
19
|
19
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
20
|
20
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.66 |
||
|
21
|
21
888-23851-00-00
Arm, Outside 1
|
888-23851-00-00 |
— | ||
|
22
|
22
888-23853-01-00
Column, Ski 1
|
888-23853-01-00 |
— | ||
|
23
|
23
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.70 |
||
|
24
|
24
90206-20037-00 Washer, Wave |
90206-20037-00 |
from US $2.13 |
||
|
25
|
25
90215-10096-00
Washer, Lock
|
90215-10096-00 |
— | ||
|
26
|
26
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
27
|
27
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
27
|
27
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
27
|
27
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
28
|
28
902-15060-54-00
Washer, Lock
|
902-15060-54-00 |
— | ||
|
29
|
29
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
29
|
29
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
29
|
29
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
