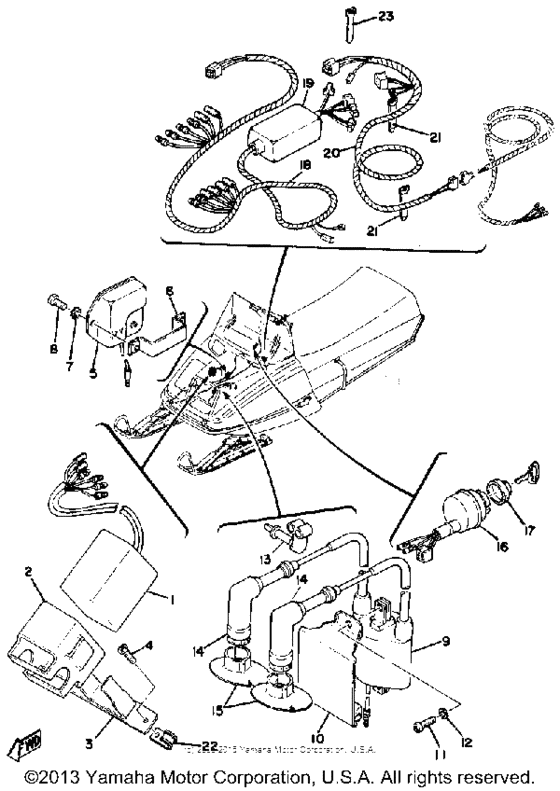

Electrical (1) Diagram Yamaha EX440 Exciter
- Model code
- EX440
- Engine Capacity
- 440
- Year
- 1980
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8J7-85540-10-00
Cdi Unit Assembly
|
8J7-85540-10-00 |
— | ||
|
2
|
2
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
3
|
3
8H6-85542-00-00
Bracket
|
8H6-85542-00-00 |
— | ||
|
4
|
4
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
4
|
4
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
4
|
4
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
5
|
5
82F-81910-A0-00 Voltage Regulator Assy |
82F-81910-A0-00 |
from US $42.69 |
||
| replacement | |||||
|
5
|
5
7XE-81910-00-00 Voltage Regulator As |
7XE-81910-00-00 |
from US $42.69 |
||
|
6
|
6
8G6-81915-00-00
Plate, Reg Fitting
|
8G6-81915-00-00 |
— | ||
|
7
|
7
92901-06400-00
Washer, Tooth
|
92901-06400-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
9
|
9
8E7-82310-11-00
Ignition Coil Asy
|
8E7-82310-11-00 |
— | ||
| replacement | |||||
|
9
|
9
8E7-82310-09-00 Ignition Coil Assy |
8E7-82310-09-00 |
US $137.54 |
||
|
10
|
10
8E7-82314-00-00
Cover, Ignitn Coil
|
8E7-82314-00-00 |
— | ||
|
11
|
11
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
11
|
11
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
8E7-82361-00-00
Clamp, Cord
|
8E7-82361-00-00 |
— | ||
|
14
|
14
8E7-82370-11-00 Plug Cap AssemblyPlug cap assy with noise suppressor |
8E7-82370-11-00 |
from US $44.80 |
||
| replacement | |||||
|
14
|
14
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
15
|
15
8E7-82372-00-00
Seal, Plug Cap
|
8E7-82372-00-00 |
— | ||
|
16
|
16
8J7-82508-20-00
Main Switch Assembly
|
8J7-82508-20-00 |
— | ||
|
17
|
17
806-82516-00-00
Collar, Main Switch
|
806-82516-00-00 |
— | ||
|
18
|
18
8J7-82590-20-00
Wire Harness Assembly
|
8J7-82590-20-00 |
— | ||
|
19
|
19
878-82599-00-00
Cover, Connecter
|
878-82599-00-00 |
— | ||
|
20
|
20
8J7-82580-20-00
Wire Harness Assembly 2
|
8J7-82580-20-00 |
— | ||
|
21
|
21
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
22
|
22
90465-06013-00 Clamp |
90465-06013-00 |
US $1.71 |
||
|
23
|
23
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
