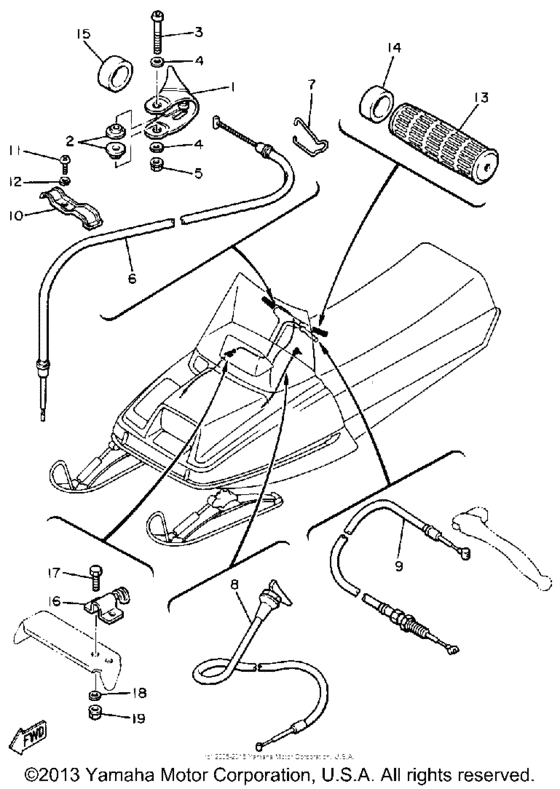

Control cable Diagram Yamaha EX440 Exciter
- Model code
- EX440
- Engine Capacity
- 440
- Year
- 1981
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8J5-42138-00-00 Lever, Throttle |
8J5-42138-00-00 |
US $37.04 |
||
| replacement | |||||
|
1
|
1
8K1-42138-00-00 Lever, Throttle |
8K1-42138-00-00 |
US $37.04 |
||
|
2
|
2
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
2
|
2
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
3
|
3
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
4
|
4
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
6
|
6
8G6-26311-00-00
Cable, Throttle 1
|
8G6-26311-00-00 |
— | ||
|
7
|
7
90468-10017-00
Clip (821-26391-00)
821-26391-00 |
90468-10017-00 |
— | ||
|
8
|
8
8L2-26331-00-00
Knob, Starter
|
8L2-26331-00-00 |
— | ||
|
9
|
9
8G6-26340-00-00
Cable, Brake
|
8G6-26340-00-00 |
— | ||
|
10
|
10
8G6-26393-00-00
Holder
|
8G6-26393-00-00 |
— | ||
|
11
|
11
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
801-26241-01-00 Grip |
801-26241-01-00 |
from US $8.22 |
||
| replacement | |||||
|
13
|
13
801-26241-02-00 Grip |
801-26241-02-00 |
from US $8.22 |
||
|
14
|
14
90387-22647-00
Collar
|
90387-22647-00 |
— | ||
|
15
|
15
90387-22726-00
Collar
|
90387-22726-00 |
— | ||
|
16
|
16
8A5-23874-00-00
Holder, Wire
|
8A5-23874-00-00 |
— | ||
|
17
|
17
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
18
|
18
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
19
|
19
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
