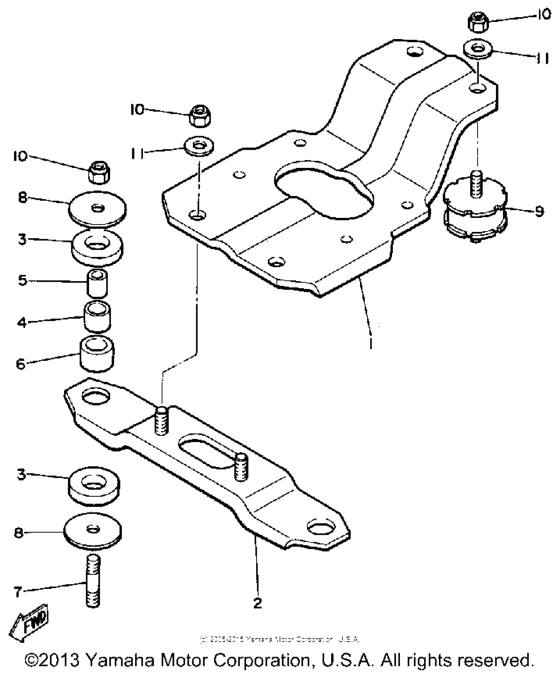

Engine bracket Diagram Yamaha EX440 Exciter
- Model code
- EX440
- Engine Capacity
- 440
- Year
- 1981
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A5-21411-00-00
Bracket, Engine 1
|
8A5-21411-00-00 |
— | ||
|
2
|
2
8A5-21419-00-00
Bracket, Engine 2
|
8A5-21419-00-00 |
— | ||
|
3
|
3
8A5-21485-00-00 Damper, Rubber 1 |
8A5-21485-00-00 |
from US $11.60 |
||
| replacement | |||||
|
3
|
3
8V0-21485-00-00 Damper, Rubber 1 |
8V0-21485-00-00 |
from US $11.60 |
||
|
4
|
4
90385-15025-00
Bush, Spec''l Rubber
|
90385-15025-00 |
— | ||
|
5
|
5
90387-10514-00
Collar
|
90387-10514-00 |
— | ||
|
6
|
6
90387-21515-00 Collar |
90387-21515-00 |
US $7.72 |
||
|
7
|
7
956-11103-45-00
Bolt, Stud
|
956-11103-45-00 |
— | ||
|
8
|
8
90201-10151-00 Washer, Plate |
90201-10151-00 |
from US $2.13 |
||
|
9
|
9
857-21486-00-00
Damper 2
|
857-21486-00-00 |
— | ||
|
10
|
10
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
10
|
10
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
10
|
10
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
11
|
11
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
