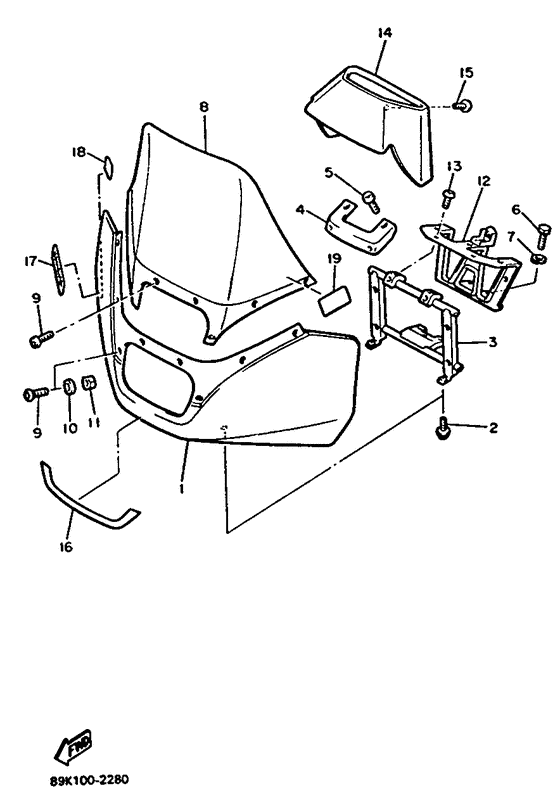

Windshield Diagram Yamaha EX570 Exciter II E
- Model code
- 89K1
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88R-77231-00-00 FairingUr for rr |
88R-77231-00-00 |
US $223.02 |
||
|
01
|
01
88S-77231-00-00
Fairing 1
Ur for bbm2 |
88S-77231-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur for bbm2 |
999-99999-99-00 |
— | ||
|
02
|
02
90159-06093-00 Screw, With Washer |
90159-06093-00 |
from US $1.36 |
||
|
03
|
03
88R-77241-00-00
Sray, Fairing
|
88R-77241-00-00 |
— | ||
|
04
|
04
88R-77221-00-00
Bracket, Windshield (L.h)
|
88R-77221-00-00 |
— | ||
|
05
|
05
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
05
|
05
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
06
|
06
97026-06030-00 Bolt |
97026-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
07
|
07
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
08
|
08
88R-77210-00-00
Windshield Comp
|
88R-77210-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
90150-05028-00 Screw, Round Head |
90150-05028-00 |
from US $1.70 |
||
|
10
|
10
90201-05821-00
Washer, Plate
|
90201-05821-00 |
— | ||
|
11
|
11
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
11
|
11
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
12
|
12
82M-83519-01-00
Bracket, Meter
|
82M-83519-01-00 |
— | ||
|
13
|
13
98906-06006-00
Screw, Bind
|
98906-06006-00 |
— | ||
|
14
|
14
88R-77251-00-00
Cover, Headlight
|
88R-77251-00-00 |
— | ||
|
15
|
15
98906-05016-00 Screw, Bind |
98906-05016-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
16
|
16
88R-77281-00-00
Stripe 1
|
88R-77281-00-00 |
— | ||
|
17
|
17
89F-77372-00-00
Emblem 16
Ur |
89F-77372-00-00 |
— | ||
|
17
|
17
89K-77372-00-00
Emblem 16
Ur |
89K-77372-00-00 |
— | ||
|
18
|
18
86M-24153-00-00
Indicator, Cock
|
86M-24153-00-00 |
— | ||
|
19
|
19
80V-2835Y-90-00
Caution Label 1
Ur for japan |
80V-2835Y-90-00 |
— | ||
