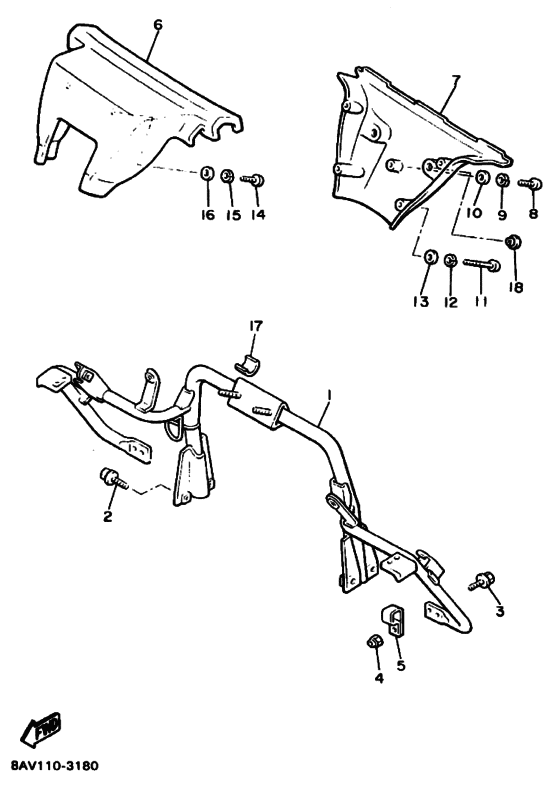

Steering gate Diagram Yamaha EX570 Exciter II
- Model code
- 89L1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88R-23870-00-00
Steering Gate Comp
．ＳＴＥＥＲＩＮＧ ＧＡＴＥ ＣＯＭＰ; |
88R-23870-00-00 |
— | ||
|
2
|
2
90105-08447-00 Bolt, FlangeＢＯＬＴ， ｗａｓｈｅｒ ｂａｓｅｄ; |
90105-08447-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
95817-08012-00 Bolt, FlangeＢＯＬＴ， ｗａｓｈｅｒ ｂａｓｅｄ; |
95817-08012-00 |
from US $1.07 |
||
|
3
|
3
95811-06030-00 Bolt, Flange(2Hr)ＢＯＬＴ， ｆｌａｎｇｅ; |
95811-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
95817-06030-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
95817-06030-00 |
from US $1.07 |
||
|
4
|
4
95701-06300-00 Nut, NylonＮＵＴ， ｎｙｌｏｎ; |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95707-06300-00 Nut, NylonＮＵＴ， ｎｙｌｏｎ; |
95707-06300-00 |
from US $1.52 |
||
|
5
|
5
90465-06013-00 ClampＣＬＡＭＰ; |
90465-06013-00 |
US $1.71 |
||
|
6
|
6
82M-23815-01-00 Pad, SteeringＰＡＤ， ｓｔｅｅｒｉｎｇ; |
82M-23815-01-00 |
from US $69.27 |
||
|
7
|
7
80L-23817-02-00 Pad, SteeringＰＡＤ， ｓｔｅｅｒｉｎｇ; |
80L-23817-02-00 |
US $77.06 |
||
|
8
|
8
985-06050-10-00
Screw, Pan Head
ＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
985-06050-10-00 |
— | ||
| replacement | |||||
|
8
|
8
985-17050-10-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
985-17050-10-00 |
from US $1.36 |
||
|
9
|
9
929-06051-00-00
Washer, Spring
ＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-05100-00 Washer, SpringＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
92907-05100-00 |
from US $1.56 |
||
|
10
|
10
92906-05200-00 WasherＷＡＳＨＥＲ， ｐｌａｉｎ; |
92906-05200-00 |
from US $1.56 |
||
| replacements | |||||
|
10
|
10
92907-05200-00 WasherＷＡＳＨＥＲ， ｐｌａｉｎ; |
92907-05200-00 |
from US $1.56 |
||
|
10
|
10
92907-05600-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｉｎ; |
92907-05600-00 |
from US $1.18 |
||
|
11
|
11
985-06050-30-00
Screw, Pan Head
ＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-05030-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98517-05030-00 |
from US $1.22 |
||
|
12
|
12
929-06051-00-00
Washer, Spring
ＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92907-05100-00 Washer, SpringＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
92907-05100-00 |
from US $1.56 |
||
|
13
|
13
929-06056-00-00
Washer, Plate
ＷＡＳＨＥＲ， ｐｌａｔｅ; |
929-06056-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-05600-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｔｅ; |
92907-05600-00 |
from US $1.18 |
||
|
14
|
14
98501-05012-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
14
|
14
98517-05012-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98517-05012-00 |
from US $1.21 |
||
|
14
|
14
98580-05012-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98580-05012-00 |
from US $2.13 |
||
|
15
|
15
93990-05100-00
Valve, Rim
ＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
93990-05100-00 |
— | ||
|
16
|
16
929-01056-00-00
Washer
ＷＡＳＨＥＲ， ｐｌａｔｅ; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
16
|
16
92990-05600-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｔｅ; |
92990-05600-00 |
from US $1.07 |
||
|
16
|
16
92907-05600-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｔｅ; |
92907-05600-00 |
from US $1.18 |
||
|
17
|
17
8V0-23858-00-00 SpacerＳＰＡＣＥＲ; |
8V0-23858-00-00 |
from US $1.56 |
||
|
18
|
18
90480-17165-00 GrommetＧＲＯＭＥＴ; |
90480-17165-00 |
from US $4.11 |
||
