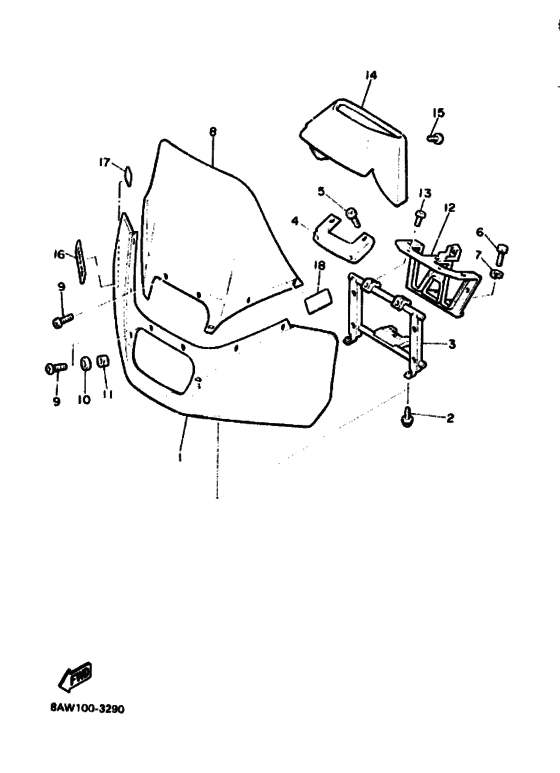

Windshield Diagram Yamaha EX570 Exciter II E
- Model code
- 8AW1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (020)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89L-77231-00-00
Fairing
|
89L-77231-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
90159-06093-00 Screw, With Washer |
90159-06093-00 |
from US $1.36 |
||
|
3
|
3
88R-77241-00-00
Sray, Fairing
|
88R-77241-00-00 |
— | ||
|
4
|
4
88R-77221-00-00
Bracket, Windshield (L.h)
|
88R-77221-00-00 |
— | ||
|
5
|
5
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
6
|
6
97026-06030-00 Bolt |
97026-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
7
|
7
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
8
|
8
88R-77210-00-00
Windshield Comp
|
88R-77210-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90150-05028-00 Screw, Round Head |
90150-05028-00 |
from US $1.70 |
||
|
10
|
10
90201-05721-00 Washer, Plate |
90201-05721-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
11
|
11
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
11
|
11
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
|
12
|
12
82M-83519-01-00
Bracket, Meter
|
82M-83519-01-00 |
— | ||
|
13
|
13
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
13
|
13
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
14
|
14
88R-77251-00-00
Cover, Headlight
|
88R-77251-00-00 |
— | ||
|
15
|
15
98906-05016-00 Screw, Bind |
98906-05016-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
16
|
16
3LT-24786-01-00 EmblemUR FOR YB (G) |
3LT-24786-01-00 |
from US $8.22 |
||
| replacements | |||||
|
16
|
16
3WF-2153E-50-00 Emblem, YamahaUR FOR YB (G) |
3WF-2153E-50-00 |
from US $8.22 |
||
|
16
|
16
999-99999-99-00
Not Available
UR FOR YB (G) |
999-99999-99-00 |
— | ||
|
16
|
16
3WF-2153E-51-00 UR FOR YB (G) |
3WF-2153E-51-00 |
from US $8.22 |
||
|
17
|
17
86M-24153-00-00
Indicator, Cock
|
86M-24153-00-00 |
— | ||
|
18
|
18
80V-2835Y-90-00
Caution Label 1
UR FOR JAPAN |
80V-2835Y-90-00 |
— | ||
