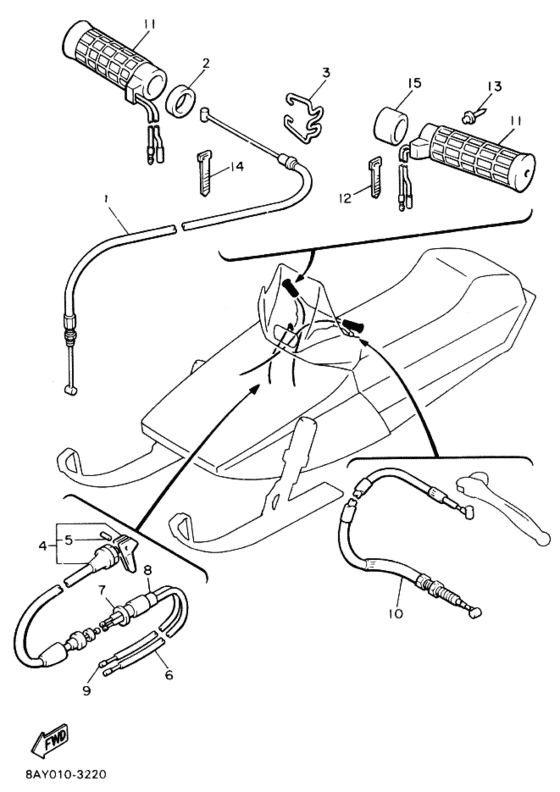

Control cable Diagram Yamaha EX570 Exciter II
- Model code
- 8AY1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AY-26311-00-00
Cable, Throttle 1
ＣＡＢＬＥ， ｔｈｒｏｔｔｌｅ １; |
8AY-26311-00-00 |
— | ||
|
2
|
2
90387-224F9-00
Collar
ＣＯＬＬＡＲ; |
90387-224F9-00 |
— | ||
|
3
|
3
8M6-26391-01-00
Clip, Cable
ＣＬＩＰ， ｃａｂｌｅ; |
8M6-26391-01-00 |
— | ||
|
4
|
4
82M-26331-01-00 Cable, Starter 1ＣＡＢＬＥ， ｓｔａｒｔｅｒ １; |
82M-26331-01-00 |
US $41.60 |
||
|
5
|
5
916-09300-10-00
Pin, Spring
・ＰＩＮ， ｓｐｒｉｎｇ; |
916-09300-10-00 |
— | ||
| replacement | |||||
|
5
|
5
91690-30010-00 Pin, Spring・ＰＩＮ， ｓｐｒｉｎｇ; |
91690-30010-00 |
from US $1.56 |
||
|
6
|
6
8AY-26334-00-00
Cable, Starter 2
ＣＡＢＬＥ， ｓｔａｒｔｅｒ ２; |
8AY-26334-00-00 |
— | ||
|
7
|
7
4U1-26261-00-00 Connector, CableＣＯＮＮＥＣＴＯＲ， ｃａｂｌｅ; |
4U1-26261-00-00 |
from US $7.08 |
||
|
8
|
8
5L6-26272-00-00 CapＣＡＰ; |
5L6-26272-00-00 |
from US $2.36 |
||
|
9
|
9
8AY-2633A-00-00
Wire, Starter 3
ＷＩＲＥ， ｓｔａｒｔｅｒ ３; |
8AY-2633A-00-00 |
— | ||
|
10
|
10
82M-26340-00-00
Cable, Brake
ＣＡＢＬＥ， ｂｒａｋｅ; |
82M-26340-00-00 |
— | ||
|
11
|
11
88T-26240-00-00 88T Grip Black 1 PcＧＲＩＰ ＡＳＳＹ; |
88T-26240-00-00 |
US $95.05 |
||
| replacements | |||||
|
11
|
11
88T-26240-85-BK
FOOTREST, REAR 1
ＧＲＩＰ ＡＳＳＹ; |
88T-26240-85-BK |
— | ||
|
11
|
11
999-99034-93-00 Grip AssyＧＲＩＰ ＡＳＳＹ; |
999-99034-93-00 |
from US $95.05 |
||
|
12
|
12
437-83936-01-00 Band, Switch CordＢＡＮＤ， ｓｗｉｔｃｈ ｃｏｒｄ; |
437-83936-01-00 |
from US $1.81 |
||
|
13
|
13
90267-40076-00 Rivet, BlindＲＩＶＥＴ， ｂｌｉｎｄ; |
90267-40076-00 |
from US $1.84 |
||
|
14
|
14
25G-83936-01-00 Band, Switch CordＢＡＮＤ， ｓｗｉｔｃｈ ｃｏｒｄ; |
25G-83936-01-00 |
from US $1.56 |
||
|
15
|
15
90387-22726-00
Collar
ＣＯＬＬＡＲ; |
90387-22726-00 |
— | ||
