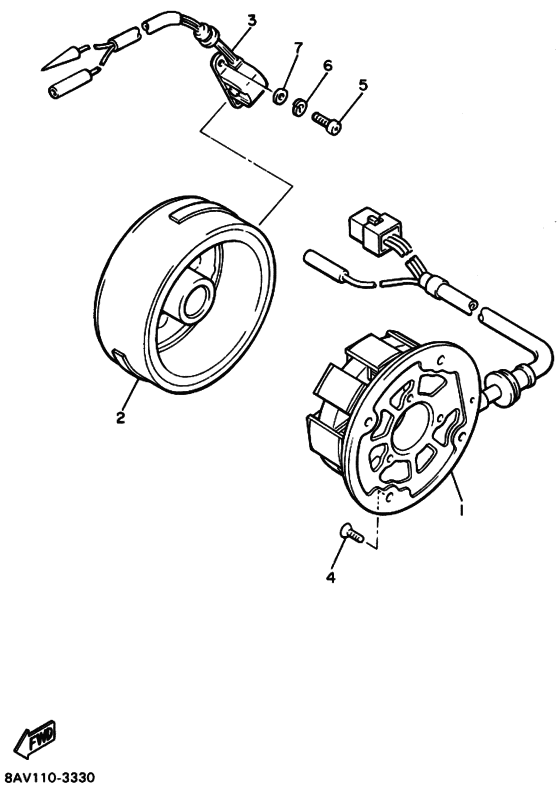

Generator Diagram Yamaha EX570 Exciter II
- Model code
- 8AY1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Model
- Exciter II
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AV-85510-00-00
Stator Assembly
ＳＴＡＴＯＲ ＡＳＳＹ; |
8AV-85510-00-00 |
— | ||
|
2
|
2
8AV-85550-00-00
Rotor Assembly
ＲＯＴＯＲ ＡＳＳＹ; |
8AV-85550-00-00 |
— | ||
|
3
|
3
8AV-85580-00-00
Coil, Pulser
ＣＯＩＬ， ｐｕｌｓｅｒ; |
8AV-85580-00-00 |
— | ||
|
4
|
4
98980-06016-00 Screw, Bind (705)ＳＣＲＥＷ， ｂｉｎｄ; |
98980-06016-00 |
from US $1.52 |
||
|
5
|
5
985-80050-14-00
Screw, Pan Head
ＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
985-80050-14-00 |
— | ||
| replacements | |||||
|
5
|
5
98502-05014-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98502-05014-00 |
from US $1.28 |
||
|
5
|
5
97885-05016-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
97885-05016-00 |
from US $3.12 |
||
|
6
|
6
929-01051-00-00
Washer, Spring
ＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-05100-00 Washer, SpringＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
929-01056-00-00
Washer
ＷＡＳＨＥＲ， ｐｌａｔｅ; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
7
|
7
92990-05600-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｔｅ; |
92990-05600-00 |
from US $1.07 |
||
|
7
|
7
92907-05600-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｔｅ; |
92907-05600-00 |
from US $1.18 |
||
