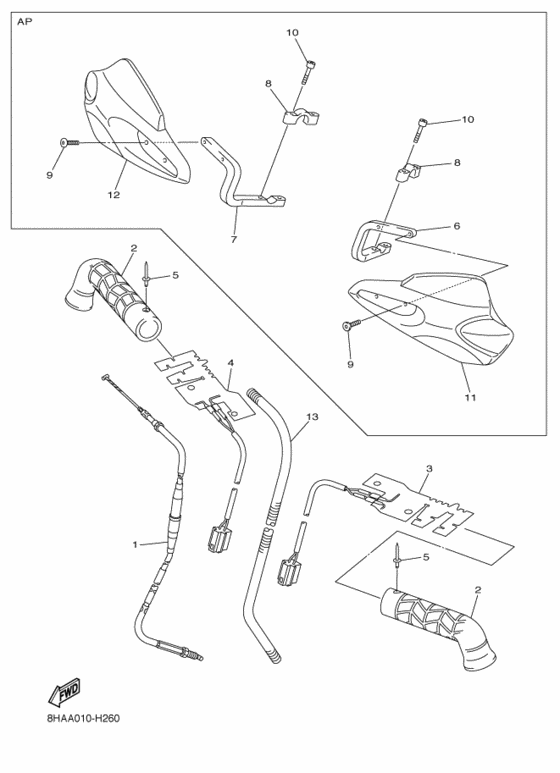

Control cable Diagram Yamaha FX10/ RFX10 FX Nytro M-TX
- Model code
- 8HAA
- Engine Capacity
- 1049
- Year
- 2009
- Sales region
- Japan (020)
- Colour
- Bluish White Solid 1 (BW S1; 0892)
- Color Variant
- B
- Power
- 130 hp
- Model
- FX Nytro M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8HA-26311-00-00 Cable, Throttle 1ＣＡＢＬＥ， ＴＨＲＯＴＴＬＥ １; |
8HA-26311-00-00 |
from US $52.64 |
||
|
2
|
2
8GF-26241-00-00 GripＧＲＩＰ; |
8GF-26241-00-00 |
from US $10.63 |
||
|
3
|
3
8HA-2626A-00-00 Grip, WarmerＧＲＩＰ，ＷＡＲＭＥＲ; |
8HA-2626A-00-00 |
from US $62.31 |
||
|
4
|
4
8HA-2626A-10-00 Grip, WarmerＧＲＩＰ，ＷＡＲＭＥＲ; |
8HA-2626A-10-00 |
from US $62.31 |
||
|
5
|
5
90267-48014-00 Rivet, Blind．．ＲＩＶＥＴ， ＢＬＩＮＤ ; ４８Ｘ１５１ ＢＬＡＣＫ |
90267-48014-00 |
from US $1.66 |
||
|
6
|
6
8GL-2612L-01-00 Bracket 3ＢＲＡＣＫＥＴ ３; ＡＰ |
8GL-2612L-01-00 |
from US $33.86 |
||
|
7
|
7
8GL-2612M-01-00 Bracket 4ＢＲＡＣＫＥＴ ４; ＡＰ |
8GL-2612M-01-00 |
from US $33.43 |
||
|
8
|
8
8GL-2612K-00-00 Bracket 2ＢＲＫＴ ２; ＡＰ |
8GL-2612K-00-00 |
from US $10.63 |
||
|
9
|
9
90109-06234-00 BoltＢＯＬＴ; ＡＰ |
90109-06234-00 |
from US $1.81 |
||
|
10
|
10
91312-05030-00 BoltＢＯＬＴ; ＡＰ |
91312-05030-00 |
from US $1.42 |
||
|
11
|
11
8GL-26141-00-00 Guard, Brush 1ＧＵＡＲＤ， ＢＲＵＳＨ １; ＡＰ |
8GL-26141-00-00 |
from US $19.98 |
||
| replacement | |||||
|
11
|
11
8GL-F6141-00-00 Guard, Brush 1ＧＵＡＲＤ， ＢＲＵＳＨ １; ＡＰ |
8GL-F6141-00-00 |
US $11.50 |
||
|
12
|
12
8GL-26142-00-00 Guard, Brush 2ＧＵＡＲＤ， ＢＲＵＳＨ ２; ＡＰ |
8GL-26142-00-00 |
from US $19.98 |
||
| replacement | |||||
|
12
|
12
8GL-F6142-00-00 Guard, Brush 2ＧＵＡＲＤ， ＢＲＵＳＨ ２; ＡＰ |
8GL-F6142-00-00 |
US $11.99 |
||
|
13
|
13
8HA-82351-00-00 Tube, CordＴＵＢＥ， ＣＯＲＤ; |
8HA-82351-00-00 |
from US $4.96 |
||
