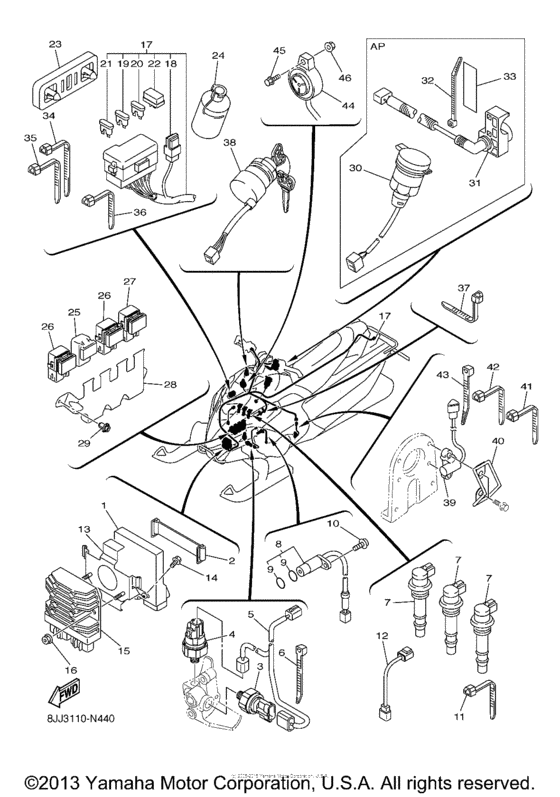

Electrical (1) Diagram Yamaha FX10/ RFX10 FX Nytro
- Model code
- 8JH2
- Engine Capacity
- 1049
- Year
- 2014
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-8591A-20-00 Engine Control Unit Assy |
8GL-8591A-20-00 |
from US $776.16 |
||
|
2
|
2
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
3
|
3
8GN-83651-00-00 Sender, Oil Pressure |
8GN-83651-00-00 |
from US $226.21 |
||
|
4
|
4
8FP-82504-00-00 Oil Pressure Switch Assy |
8FP-82504-00-00 |
from US $46.84 |
||
|
5
|
5
8GL-82318-10-00 Wire, Sub-Lead |
8GL-82318-10-00 |
from US $31.45 |
||
|
6
|
6
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
7
|
7
8ES-82310-00-00 Ignition Coil Assy |
8ES-82310-00-00 |
from US $125.56 |
||
|
8
|
8
8GL-81670-00-00 Pick-Up Assy |
8GL-81670-00-00 |
from US $171.59 |
||
|
9
|
9
5VY-8A8E1-00-00 O-Ring 1 |
5VY-8A8E1-00-00 |
from US $2.13 |
||
|
10
|
10
90110-06218-00 Bolt, Hexagon Socket Head |
90110-06218-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
90110-06219-00 Bolt, Hexagon Socket Head |
90110-06219-00 |
from US $1.56 |
||
|
11
|
11
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
11
|
11
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
12
|
12
8GL-81515-10-00 Lead Wire Assy |
8GL-81515-10-00 |
from US $22.81 |
||
|
13
|
13
8GL-85991-00-00 Bracket, Unit |
8GL-85991-00-00 |
from US $15.16 |
||
|
14
|
14
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.66 |
||
|
15
|
15
1D7-81960-01-00 Rectifier & Regulator Assy |
1D7-81960-01-00 |
from US $242.47 |
||
|
16
|
16
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
16
|
16
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
17
|
17
8HK-82590-31-00 Wire Harness Assy |
8HK-82590-31-00 |
US $757.49 |
||
|
18
|
18
5PS-82151-00-00 Slow Blow Fuse |
5PS-82151-00-00 |
from US $6.94 |
||
| replacement | |||||
|
18
|
18
JR9-82151-00-00 Fuse (40A) |
JR9-82151-00-00 |
from US $6.11 |
||
|
19
|
19
5JJ-82151-30-00
Fuse (10A-Bl)
10A |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
19
|
19
67F-82151-40-00 Fuse (10A)10A |
67F-82151-40-00 |
from US $1.90 |
||
|
20
|
20
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.74 |
||
|
21
|
21
5JJ-82151-50-00 Fuse (3A)3A |
5JJ-82151-50-00 |
from US $3.74 |
||
| replacement | |||||
|
21
|
21
67F-82151-30-00 Fuse (3A)3A |
67F-82151-30-00 |
from US $2.50 |
||
|
22
|
22
4WA-81980-00-00 Diode Assy |
4WA-81980-00-00 |
from US $16.92 |
||
|
23
|
23
8FA-83614-00-00 Bracket |
8FA-83614-00-00 |
from US $2.35 |
||
|
24
|
24
8GL-8252U-00-00 Cover |
8GL-8252U-00-00 |
from US $4.39 |
||
|
25
|
25
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $22.20 |
||
|
26
|
26
8HG-81950-09-00 Relay Assy (8Hg-00)8HG-09 |
8HG-81950-09-00 |
from US $8.50 |
||
| replacement | |||||
|
26
|
26
8HG-81951-10-00 Relay Assy (8Hg-10)8HG-09 |
8HG-81951-10-00 |
from US $8.50 |
||
|
27
|
27
8GN-81950-00-00 Relay Assy (8Gn-00)8GN-00 |
8GN-81950-00-00 |
from US $11.93 |
||
|
28
|
28
8GL-81952-00-00 Holder, Relay |
8GL-81952-00-00 |
from US $17.99 |
||
|
29
|
29
902-69080-06-00 Rivet |
902-69080-06-00 |
from US $2.55 |
||
|
30
|
30
8FP-8254B-00-00 Terminal CompAP |
8FP-8254B-00-00 |
from US $59.55 |
||
|
31
|
31
8HK-8254B-00-00 Terminal CompAP |
8HK-8254B-00-00 |
US $157.03 |
||
|
32
|
32
90464-35132-00 ClampAP |
90464-35132-00 |
from US $1.42 |
||
|
33
|
33
8HF-84527-00-00 DamperAP |
8HF-84527-00-00 |
from US $4.39 |
||
|
34
|
34
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
35
|
35
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
35
|
35
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
36
|
36
904-64130-77-00 Clamp |
904-64130-77-00 |
from US $1.94 |
||
| replacement | |||||
|
36
|
36
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
37
|
37
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
38
|
38
8HK-82510-00-00 Main Switch Assy |
8HK-82510-00-00 |
from US $68.27 |
||
|
39
|
39
8GL-83755-00-00 Sensor, Speed |
8GL-83755-00-00 |
from US $100.58 |
||
|
40
|
40
8GC-2198G-00-00 Cover 2 |
8GC-2198G-00-00 |
from US $17.57 |
||
|
41
|
41
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
41
|
41
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
42
|
42
90464-35132-00 Clamp |
90464-35132-00 |
from US $1.42 |
||
|
43
|
43
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
44
|
44
8GL-83383-00-00 Buzzer |
8GL-83383-00-00 |
from US $52.09 |
||
|
45
|
45
90159-05035-00 Screw, With Washer |
90159-05035-00 |
from US $1.70 |
||
|
46
|
46
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
46
|
46
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
