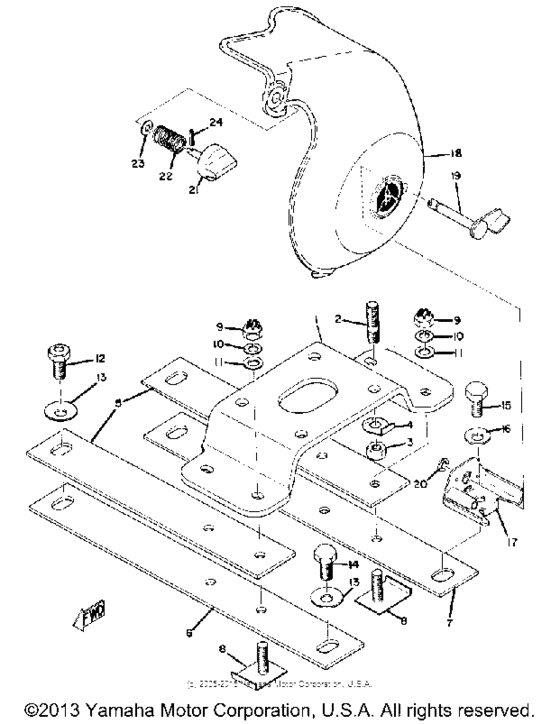

Engine bracket gp Diagram Yamaha GP292
- Model code
- GP292
- Engine Capacity
- 292
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
812-21411-00-00 Bracket, Engine 1 |
812-21411-00-00 |
US $43.63 |
||
|
2
|
2
901-16100-84-00
Bolt, Stud
|
901-16100-84-00 |
— | ||
|
3
|
3
902-15100-77-00
Washer, Lock
|
902-15100-77-00 |
— | ||
|
5
|
5
822-21489-00-00
Bracket, Eng Lower
|
822-21489-00-00 |
— | ||
|
6
|
6
822-21419-00-00
Bracket, Engine 2
|
822-21419-00-00 |
— | ||
|
7
|
7
822-21429-00-00
Bracket, Engine 3
|
822-21429-00-00 |
— | ||
|
8
|
8
822-21482-00-00
Bolt, Eng Mntng 2
|
822-21482-00-00 |
— | ||
|
9
|
9
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
90201-08100-00 Washer, Plate |
90201-08100-00 |
from US $2.69 |
||
|
12
|
12
901-01100-57-00
Bolt
|
901-01100-57-00 |
— | ||
|
13
|
13
902-08100-13-00
Washer, Conical Spr
|
902-08100-13-00 |
— | ||
|
14
|
14
97011-10020-00 Bolt (5X2) |
97011-10020-00 |
from US $3.12 |
||
| replacement | |||||
|
14
|
14
97017-10020-00 Bolt |
97017-10020-00 |
from US $3.12 |
||
|
15
|
15
901-01100-55-00
Bolt
|
901-01100-55-00 |
— | ||
|
16
|
16
90208-10012-00 Washer, Conical Spring |
90208-10012-00 |
from US $1.52 |
||
|
17
|
17
821-77315-00-00
Bracket 1
|
821-77315-00-00 |
— | ||
|
18
|
18
810-77311-01-00
Guard, Drive
|
810-77311-01-00 |
— | ||
|
19
|
19
806-77314-00-00 Arm, Fitting |
806-77314-00-00 |
US $19.33 |
||
|
20
|
20
990-09066-00-00
Circlip
|
990-09066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
21
|
21
806-77324-00-00
Knob
|
806-77324-00-00 |
— | ||
|
22
|
22
905-01161-03-00
Spring 1
|
905-01161-03-00 |
— | ||
| replacement | |||||
|
22
|
22
806-77325-00-00
SPRING
|
806-77325-00-00 |
— | ||
|
23
|
23
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
23
|
23
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
24
|
24
91690-25016-00 Pin, Spring |
91690-25016-00 |
from US $2.98 |
||
