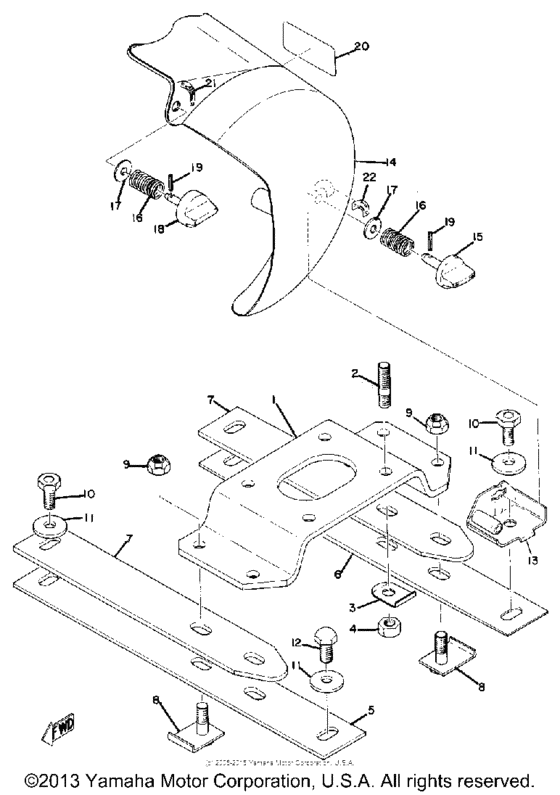

Engine bracket Diagram Yamaha GP292
- Model code
- GP292
- Engine Capacity
- 292
- Year
- 1974
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
839-21411-01-00
Bracket, Engine 1
|
839-21411-01-00 |
— | ||
|
2
|
2
901-16100-84-00
Bolt, Stud
|
901-16100-84-00 |
— | ||
|
3
|
3
839-21493-00-00
Washer, Lock
|
839-21493-00-00 |
— | ||
|
4
|
4
95311-10600-00 Nut |
95311-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
5
|
5
839-21419-01-00
Bracket, Engine 2
|
839-21419-01-00 |
— | ||
|
6
|
6
839-21429-01-00 Bracket, Engine 3 |
839-21429-01-00 |
US $30.24 |
||
|
7
|
7
839-21482-00-00
Bolt, Eng Mntng 2
|
839-21482-00-00 |
— | ||
|
8
|
8
839-21482-00-00
Bolt, Eng Mntng 2
|
839-21482-00-00 |
— | ||
|
9
|
9
901-85100-30-00
Nut, Self-Locking
|
901-85100-30-00 |
— | ||
|
10
|
10
901-01100-57-00
Bolt
|
901-01100-57-00 |
— | ||
|
11
|
11
902-08100-13-00
Washer, Conical Spr
|
902-08100-13-00 |
— | ||
|
12
|
12
901-06100-15-00
Bolt, Dome Head
|
901-06100-15-00 |
— | ||
|
13
|
13
844-77315-00-00
Bracket 1
|
844-77315-00-00 |
— | ||
|
14
|
14
844-77311-00-00 Guard, Drive |
844-77311-00-00 |
US $63.90 |
||
|
15
|
15
844-77324-00-00 Knob |
844-77324-00-00 |
US $6.14 |
||
|
16
|
16
905-01161-03-00
Spring 1
|
905-01161-03-00 |
— | ||
| replacement | |||||
|
16
|
16
806-77325-00-00
SPRING
|
806-77325-00-00 |
— | ||
|
17
|
17
90201-08104-00
Washer, Plate
|
90201-08104-00 |
— | ||
|
18
|
18
829-77324-00-00
Knob
|
829-77324-00-00 |
— | ||
|
19
|
19
91609-40018-00 Pin,spring |
91609-40018-00 |
US $1.56 |
||
| replacement | |||||
|
19
|
19
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
|
20
|
20
829-77365-00-00
Emblem 10
10 |
829-77365-00-00 |
— | ||
|
21
|
21
829-77366-00-00
Emblem 11
11 |
829-77366-00-00 |
— | ||
|
22
|
22
829-77367-00-00
Emblem 12
12 |
829-77367-00-00 |
— | ||
