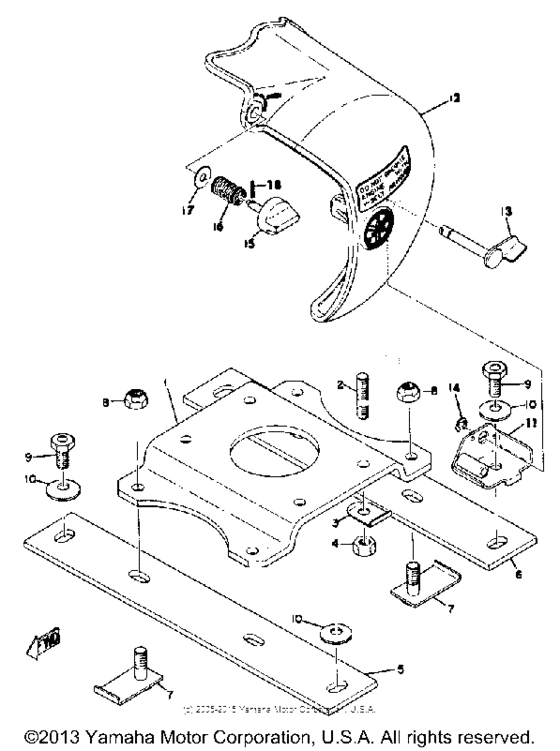

Engine bracket Diagram Yamaha GP338
- Model code
- GP338
- Engine Capacity
- 338
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
838-21411-01-00
Bracket, Engine 1
|
838-21411-01-00 |
— | ||
|
2
|
2
901-16100-84-00
Bolt, Stud
|
901-16100-84-00 |
— | ||
|
3
|
3
902-15100-76-00
Washer, Lock
|
902-15100-76-00 |
— | ||
|
4
|
4
95311-10600-00 Nut |
95311-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
5
|
5
841-21419-00-00
Bracket, Engine 2
|
841-21419-00-00 |
— | ||
|
6
|
6
829-21419-00-00
Bracket, Engine 2
|
829-21419-00-00 |
— | ||
|
7
|
7
829-21482-00-00
Bolt, Eng Mntng 2
|
829-21482-00-00 |
— | ||
|
8
|
8
901-85100-30-00
Nut, Self-Locking
|
901-85100-30-00 |
— | ||
|
9
|
9
901-01100-55-00
Bolt
|
901-01100-55-00 |
— | ||
|
10
|
10
902-08100-13-00
Washer, Conical Spr
|
902-08100-13-00 |
— | ||
|
11
|
11
844-77315-00-00
Bracket 1
|
844-77315-00-00 |
— | ||
|
12
|
12
844-77311-00-00 Guard, Drive |
844-77311-00-00 |
US $63.90 |
||
|
13
|
13
806-77314-00-00 Arm, Fitting |
806-77314-00-00 |
US $19.33 |
||
|
14
|
14
990-09066-00-00
Circlip
|
990-09066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
15
|
15
844-77324-00-00 Knob |
844-77324-00-00 |
US $6.14 |
||
|
16
|
16
905-01161-03-00
Spring 1
|
905-01161-03-00 |
— | ||
| replacement | |||||
|
16
|
16
806-77325-00-00
SPRING
|
806-77325-00-00 |
— | ||
|
17
|
17
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
17
|
17
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
18
|
18
91609-40018-00 Pin,spring |
91609-40018-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
