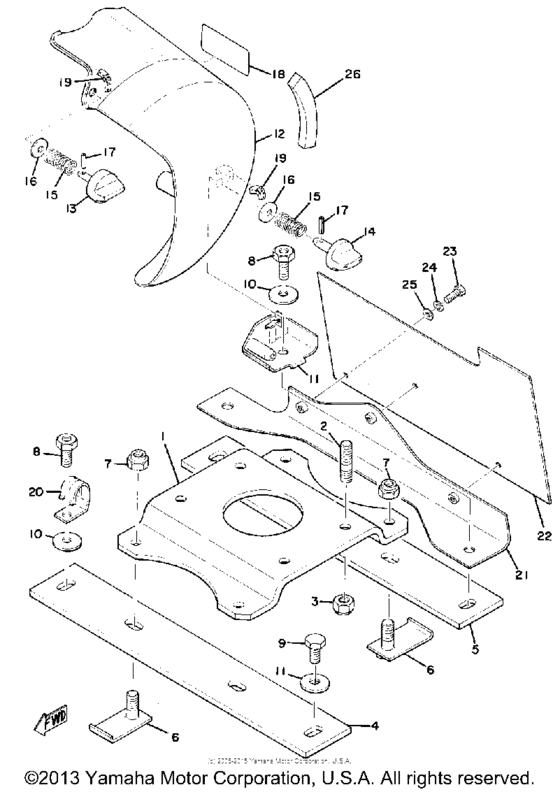

Engine bracket Diagram Yamaha GP440
- Model code
- GP440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
838-21411-01-00
Bracket, Engine 1
|
838-21411-01-00 |
— | ||
|
2
|
2
901-16100-84-00
Bolt, Stud
|
901-16100-84-00 |
— | ||
|
3
|
3
901-85100-30-00
Nut, Self-Locking
|
901-85100-30-00 |
— | ||
|
4
|
4
841-21419-00-00
Bracket, Engine 2
|
841-21419-00-00 |
— | ||
|
5
|
5
829-21419-00-00
Bracket, Engine 2
|
829-21419-00-00 |
— | ||
|
6
|
6
829-21482-00-00
Bolt, Eng Mntng 2
|
829-21482-00-00 |
— | ||
|
7
|
7
901-85100-30-00
Nut, Self-Locking
|
901-85100-30-00 |
— | ||
|
8
|
8
901-01100-57-00
Bolt
|
901-01100-57-00 |
— | ||
|
9
|
9
901-06100-15-00
Bolt, Dome Head
|
901-06100-15-00 |
— | ||
|
10
|
10
902-08100-13-00
Washer, Conical Spr
|
902-08100-13-00 |
— | ||
|
11
|
11
844-77315-00-00
Bracket 1
|
844-77315-00-00 |
— | ||
|
12
|
12
865-77311-00-00
Guard, Drive
|
865-77311-00-00 |
— | ||
|
13
|
13
829-77324-00-00
Knob
|
829-77324-00-00 |
— | ||
|
14
|
14
844-77324-00-00 Knob |
844-77324-00-00 |
US $6.14 |
||
|
15
|
15
905-01161-03-00
Spring 1
|
905-01161-03-00 |
— | ||
| replacement | |||||
|
15
|
15
806-77325-00-00
SPRING
|
806-77325-00-00 |
— | ||
|
16
|
16
90201-08104-00
Washer, Plate
|
90201-08104-00 |
— | ||
|
17
|
17
91609-40018-00 Pin,spring |
91609-40018-00 |
US $1.56 |
||
| replacement | |||||
|
17
|
17
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
|
18
|
18
829-77365-00-00
Emblem 10
10 |
829-77365-00-00 |
— | ||
|
19
|
19
829-77367-00-00
Emblem 12
12 |
829-77367-00-00 |
— | ||
|
20
|
20
904-65060-12-00
Clamp
|
904-65060-12-00 |
— | ||
|
21
|
21
8E4-21421-00-00
Stay, Rear Upper
|
8E4-21421-00-00 |
— | ||
|
22
|
22
8E4-21455-00-00
Plate, Patch
|
8E4-21455-00-00 |
— | ||
|
23
|
23
97313-05012-00 Bolt, Hexagon |
97313-05012-00 |
from US $1.53 |
||
| replacement | |||||
|
23
|
23
97013-05012-00 Bolt |
97013-05012-00 |
from US $1.57 |
||
|
24
|
24
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
25
|
25
902-01050-36-00
Washer, Plate
|
902-01050-36-00 |
— | ||
| replacement | |||||
|
25
|
25
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
26
|
26
8E4-77319-00-00
Damper 1
|
8E4-77319-00-00 |
— | ||
