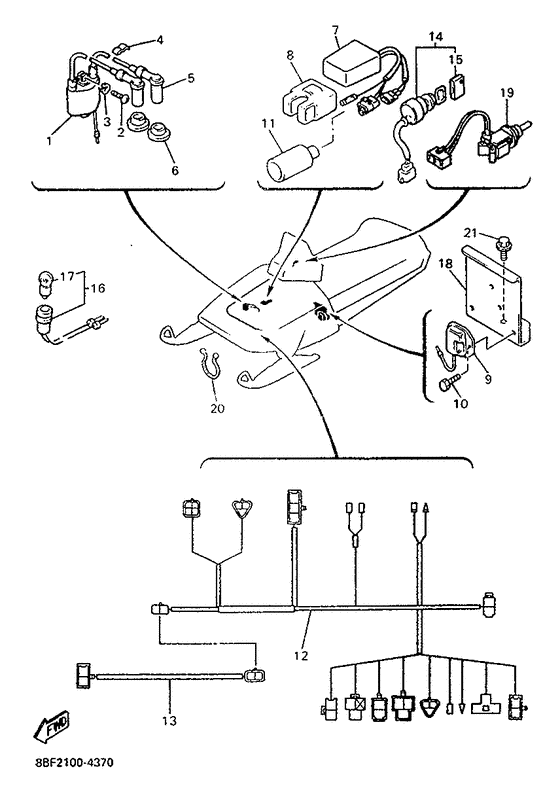

Electrical 1 Diagram Yamaha PZ480 Phazer II
- Model code
- 8BF2
- Engine Capacity
- 480
- Year
- 1995
- Sales region
- Canada (999)
- Colour
- Yamaha Black (YB; 0033)
- Model
- Phazer II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88T-82310-00-00 Ignition Coil Assy |
88T-82310-00-00 |
from US $82.36 |
||
| replacement | |||||
|
01
|
01
8AB-82310-09-00 Ignition Coil Assy |
8AB-82310-09-00 |
from US $82.36 |
||
|
02
|
02
98501-06020-00 Screw, Pan Head(3Bc) |
98501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
02
|
02
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
04
|
04
861-82361-00-00 Clamp, Cord |
861-82361-00-00 |
from US $1.84 |
||
|
05
|
05
8K1-82370-20-00 Plug Cap Assembly |
8K1-82370-20-00 |
from US $31.16 |
||
| replacement | |||||
|
05
|
05
85G-82370-20-00 Plug Cap Assembly |
85G-82370-20-00 |
from US $32.04 |
||
|
06
|
06
8V0-82372-00-00 Seal, Plug Cap |
8V0-82372-00-00 |
from US $3.83 |
||
|
07
|
07
8BL-85540-00-00 C.d.i. Unit Assembly |
8BL-85540-00-00 |
US $294.26 |
||
|
08
|
08
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
09
|
09
82M-81910-A0-00 Voltage Regulator Assy |
82M-81910-A0-00 |
from US $59.55 |
||
|
10
|
10
97026-06014-00 Bolt |
97026-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
11
|
11
8Y0-82599-00-00 Cover, Connecter |
8Y0-82599-00-00 |
from US $1.70 |
||
|
12
|
12
8BF-82590-00-00
Wire Harness Assembly
|
8BF-82590-00-00 |
— | ||
|
13
|
13
8BF-82509-00-00 Wire, Sub Lead |
8BF-82509-00-00 |
US $23.90 |
||
|
14
|
14
8K4-82508-20-00
Main Switch Assembly
|
8K4-82508-20-00 |
— | ||
| replacement | |||||
|
14
|
14
8K4-82510-20-00
Main Switch Assy
|
8K4-82510-20-00 |
— | ||
|
15
|
15
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
16
|
16
8V0-84301-00-00
Pilot Light Assembly 1
|
8V0-84301-00-00 |
— | ||
|
17
|
17
8V0-85353-00-00
Bulb (12V5W)
|
8V0-85353-00-00 |
— | ||
|
18
|
18
89F-85379-00-00 Cover, Resistor |
89F-85379-00-00 |
US $17.23 |
||
|
19
|
19
8BF-82917-00-00
Switch
|
8BF-82917-00-00 |
— | ||
|
20
|
20
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
21
|
21
958-27060-10-00
Bolt, Flange(Jn5)
|
958-27060-10-00 |
— | ||
| replacement | |||||
|
21
|
21
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
