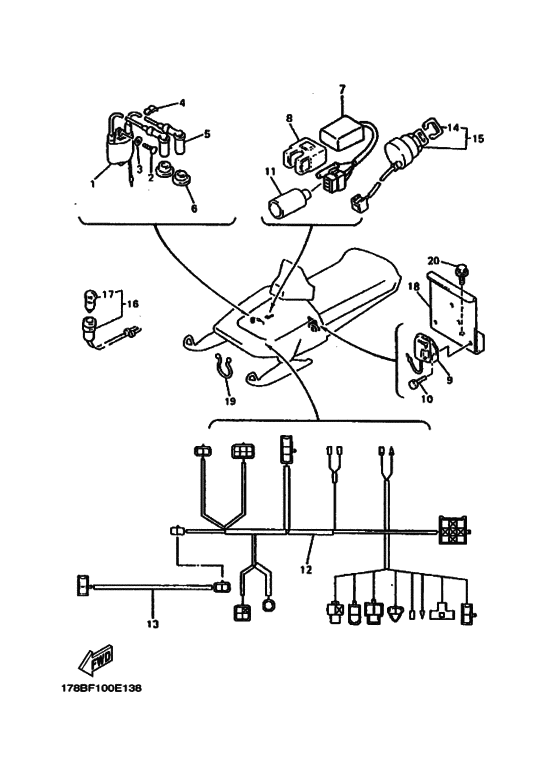

Electrical 1 Diagram Yamaha PZ480 Phazer II SS
- Model code
- 8BF4
- Engine Capacity
- 480
- Year
- 1997
- Sales region
- Europe (020)
- Colour
- Heat Red (HTR; 00EY)
- Color Variant
- A
- Model
- Phazer II SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88T-82310-00-00 Ignition Coil Assy |
88T-82310-00-00 |
from US $82.36 |
||
| replacement | |||||
|
1
|
1
8AB-82310-09-00 Ignition Coil Assy |
8AB-82310-09-00 |
from US $82.36 |
||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
4
|
4
861-82361-00-00 Clamp, Cord |
861-82361-00-00 |
from US $1.84 |
||
|
5
|
5
8K1-82370-20-00 Plug Cap Assembly |
8K1-82370-20-00 |
from US $32.04 |
||
| replacement | |||||
|
5
|
5
85G-82370-20-00 Plug Cap Assembly |
85G-82370-20-00 |
from US $32.04 |
||
|
6
|
6
8V0-82372-00-00 Seal, Plug Cap |
8V0-82372-00-00 |
from US $3.83 |
||
|
7
|
7
8BK-85540-00-00
C.d.i. Unit Assembly
|
8BK-85540-00-00 |
— | ||
| replacement | |||||
|
7
|
7
8BK-85540-01-00
C.d.i. Unit Assembly
|
8BK-85540-01-00 |
— | ||
|
8
|
8
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
|
9
|
9
82M-81910-A0-00 Voltage Regulator Assy |
82M-81910-A0-00 |
from US $59.55 |
||
|
10
|
10
97007-06014-00 Bolt |
97007-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
11
|
11
8Y0-82599-00-00 Cover, Connecter |
8Y0-82599-00-00 |
from US $1.70 |
||
|
12
|
12
8BF-82590-10-00 Wire Harness Assy |
8BF-82590-10-00 |
US $212.58 |
||
|
13
|
13
8BF-82509-00-00 Wire, Sub Lead |
8BF-82509-00-00 |
US $23.90 |
||
|
14
|
14
8AB-82510-00-00 Main Switch Assy |
8AB-82510-00-00 |
from US $94.36 |
||
| replacement | |||||
|
14
|
14
8AB-82510-01-00 Main Switch Assy |
8AB-82510-01-00 |
from US $85.55 |
||
|
15
|
15
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
16
|
16
8V0-84301-00-00
Pilot Light Assembly 1
|
8V0-84301-00-00 |
— | ||
|
17
|
17
8V0-85353-00-00
Bulb (12V5W)
12V5W |
8V0-85353-00-00 |
— | ||
|
18
|
18
89F-85379-00-00 Cover, Resistor |
89F-85379-00-00 |
US $17.23 |
||
|
19
|
19
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
20
|
20
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
