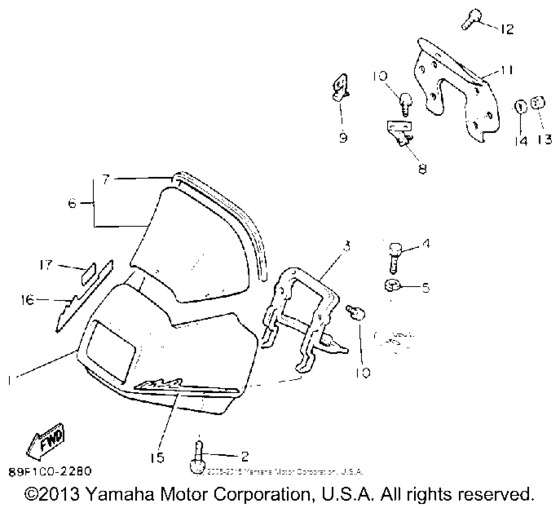

Windshield Diagram Yamaha PZ480 Phazer II
- Model code
- PZ480
- Engine Capacity
- 480
- Year
- 1992
- Sales region
- USA
- Model
- Phazer II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86F-77231-00-00
Fairing 1
UR RR |
86F-77231-00-00 |
— | ||
|
2
|
2
989-06060-10-00
Screw, Bind
|
989-06060-10-00 |
— | ||
| replacement | |||||
|
2
|
2
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
3
|
3
8V0-77241-00-00
Stay, Fairing
|
8V0-77241-00-00 |
— | ||
|
4
|
4
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
87F-77210-00-00 Windshield Comp. (8Bh-77210-01- |
87F-77210-00-00 |
US $157.50 |
||
| replacements | |||||
|
6
|
6
8BH-77210-00-XX
Windshield Comp. (8Bh-77210-01-
|
8BH-77210-00-XX |
— | ||
|
6
|
6
8BH-77210-01-00 Windshield |
8BH-77210-01-00 |
from US $157.50 |
||
|
7
|
7
87F-77213-00-00 Trim, Upper |
87F-77213-00-00 |
US $33.84 |
||
| replacement | |||||
|
7
|
7
87K-77213-00-00
Trim, Upper
|
87K-77213-00-00 |
— | ||
|
8
|
8
8X9-77218-00-00 Washer 1 |
8X9-77218-00-00 |
US $20.95 |
||
|
9
|
9
8X9-77219-00-00 Washer 2 |
8X9-77219-00-00 |
US $20.95 |
||
|
10
|
10
90154-05023-00 Screw, Pan Head |
90154-05023-00 |
from US $0.76 |
||
| replacement | |||||
|
10
|
10
98502-05006-00 Screw, Pan Head |
98502-05006-00 |
from US $0.68 |
||
|
11
|
11
8X9-77251-00-00
Cover, Headlight
|
8X9-77251-00-00 |
— | ||
|
12
|
12
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
13
|
13
90176-05059-00 Nut, Crown(8V0) |
90176-05059-00 |
from US $1.28 |
||
|
14
|
14
90201-054K4-00 Washer, Plate(81H) |
90201-054K4-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
90201-05556-00 Washer, Plate |
90201-05556-00 |
from US $1.42 |
||
|
15
|
15
89F-77281-00-00
Stripe 1
|
89F-77281-00-00 |
— | ||
|
16
|
16
89F-77282-00-00
Stripe 2
|
89F-77282-00-00 |
— | ||
|
17
|
17
89F-77372-00-00
Emblem 16
16 |
89F-77372-00-00 |
— | ||
