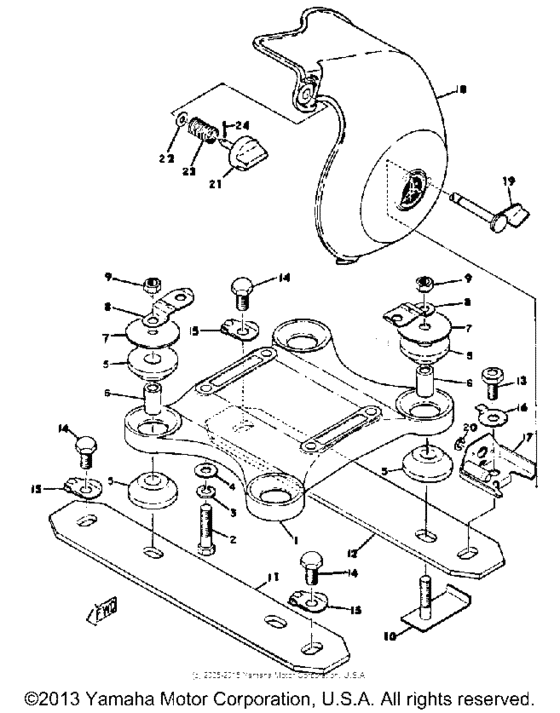

Engine bracket Diagram Yamaha SL433
- Model code
- SL433
- Engine Capacity
- 433
- Year
- 1972
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
810-21411-00-00
Bracket, Engine 1
|
810-21411-00-00 |
— | ||
|
2
|
2
97313-10050-00 Bolt,hexagon(676) |
97313-10050-00 |
US $5.74 |
||
| replacement | |||||
|
2
|
2
970-13100-50-00
Bolt, Hexagon
|
970-13100-50-00 |
— | ||
|
3
|
3
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
4
|
4
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
5
|
5
807-15316-00-00
Damper, Eng Mount 1
|
807-15316-00-00 |
— | ||
|
6
|
6
905-60100-20-00
Spacer
|
905-60100-20-00 |
— | ||
|
7
|
7
807-21491-00-00
Washer, Lock
|
807-21491-00-00 |
— | ||
|
8
|
8
810-15176-00-00
Gasket, Blind Plg 2
|
810-15176-00-00 |
— | ||
|
9
|
9
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
9
|
9
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
10
|
10
821-21482-00-00 Bolt, Eng Mntng 2 |
821-21482-00-00 |
US $5.92 |
||
|
11
|
11
821-21419-00-00
Bracket, Engine 2
|
821-21419-00-00 |
— | ||
|
12
|
12
821-21419-00-00
Bracket, Engine 2
|
821-21419-00-00 |
— | ||
|
13
|
13
901-01100-55-00
Bolt
|
901-01100-55-00 |
— | ||
|
14
|
14
97011-10020-00 Bolt (5X2) |
97011-10020-00 |
from US $3.12 |
||
| replacement | |||||
|
14
|
14
97017-10020-00 Bolt |
97017-10020-00 |
from US $3.12 |
||
|
15
|
15
821-21492-00-00
Washer, Lock
|
821-21492-00-00 |
— | ||
|
16
|
16
902-15100-73-00
Washer, Lock
|
902-15100-73-00 |
— | ||
|
17
|
17
821-77352-00-00
Emblem 2
|
821-77352-00-00 |
— | ||
|
18
|
18
810-77311-01-00
Guard, Drive
|
810-77311-01-00 |
— | ||
|
19
|
19
806-77314-00-00 Arm, Fitting |
806-77314-00-00 |
US $19.33 |
||
|
20
|
20
990-09066-00-00
Circlip
|
990-09066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
21
|
21
806-77324-00-00
Knob
|
806-77324-00-00 |
— | ||
|
22
|
22
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
22
|
22
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
23
|
23
905-01161-03-00
Spring 1
|
905-01161-03-00 |
— | ||
| replacement | |||||
|
23
|
23
806-77325-00-00
SPRING
|
806-77325-00-00 |
— | ||
|
24
|
24
91690-25016-00 Pin, Spring |
91690-25016-00 |
from US $2.98 |
||
