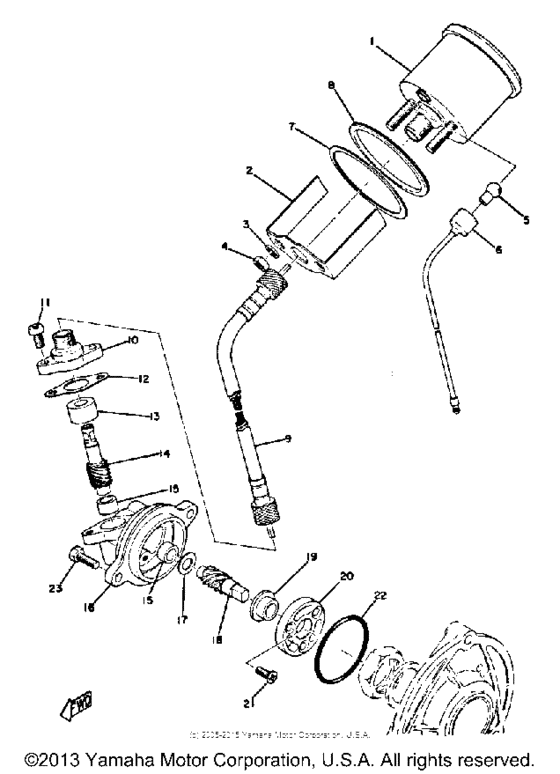

Speedometer Diagram Yamaha SL433
- Model code
- SL433
- Engine Capacity
- 433
- Year
- 1972
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
821-83510-40-00 Speedometer Assembly |
821-83510-40-00 |
US $74.75 |
||
|
3
|
3
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
4
|
4
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
5
|
5
256-84347-00-00
Bulb
|
256-84347-00-00 |
— | ||
|
6
|
6
803-83536-10-00
Socket, Meter
|
803-83536-10-00 |
— | ||
|
7
|
7
803-83577-00-00
Plate, Fitting
|
803-83577-00-00 |
— | ||
|
8
|
8
809-83513-00-00
Damper
|
809-83513-00-00 |
— | ||
|
9
|
9
813-83550-01-00
Speedometer Cableass''y
|
813-83550-01-00 |
— | ||
|
10
|
10
8E3-47721-10-00 Cover, Housing |
8E3-47721-10-00 |
from US $20.36 |
||
|
11
|
11
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
12
|
12
810-47727-10-00
Gasket
|
810-47727-10-00 |
— | ||
| replacement | |||||
|
12
|
12
810-47727-11-00
GEAR, DRIVEN
|
810-47727-11-00 |
— | ||
|
13
|
13
903-80080-05-00
Bush, Solid
|
903-80080-05-00 |
— | ||
|
14
|
14
810-47741-11-00
Gear, Driven (810-47741-10)
810-47741-10 |
810-47741-11-00 |
— | ||
|
15
|
15
903-80080-02-00
Bush, Solid
|
903-80080-02-00 |
— | ||
|
16
|
16
8E6-47711-10-00 Housing |
8E6-47711-10-00 |
US $71.78 |
||
|
17
|
17
810-47717-10-00 Shim |
810-47717-10-00 |
US $4.70 |
||
|
18
|
18
810-47731-11-00
Gear, Drive
|
810-47731-11-00 |
— | ||
|
19
|
19
903-81100-03-00
Bush, Solid
|
903-81100-03-00 |
— | ||
|
20
|
20
853-47712-10-00 Journal |
853-47712-10-00 |
from US $24.82 |
||
|
21
|
21
98701-04012-00 Screw, Flat Head |
98701-04012-00 |
from US $1.52 |
||
| replacement | |||||
|
21
|
21
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
22
|
22
932-10431-41-00
O-Ring
|
932-10431-41-00 |
— | ||
|
23
|
23
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
