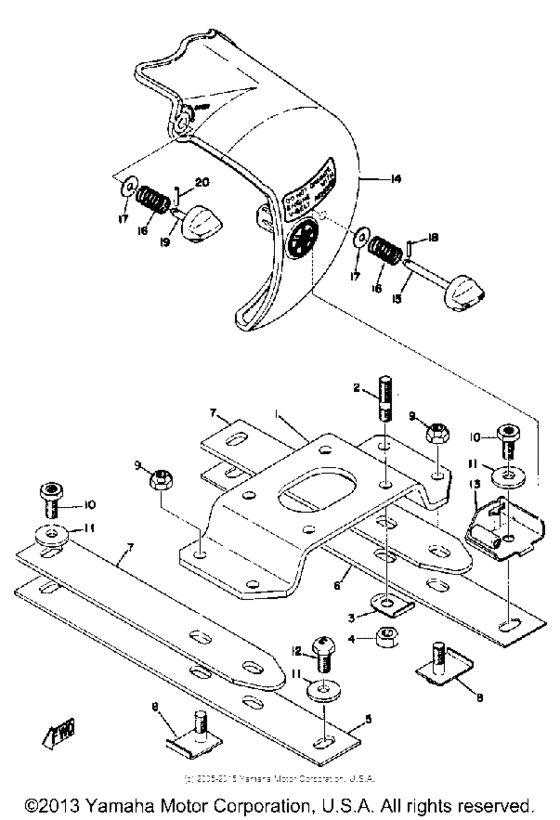

Engine bracket Diagram Yamaha SM292
- Model code
- SM292
- Engine Capacity
- 292
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
839-21411-01-00
Bracket, Engine 1
|
839-21411-01-00 |
— | ||
|
2
|
2
901-16100-84-00
Bolt, Stud
|
901-16100-84-00 |
— | ||
|
3
|
3
839-21493-00-00
Washer, Lock
|
839-21493-00-00 |
— | ||
|
4
|
4
901-85100-31-00
Nut, Self-Locking
|
901-85100-31-00 |
— | ||
|
5
|
5
839-21419-01-00
Bracket, Engine 2
|
839-21419-01-00 |
— | ||
|
6
|
6
839-21429-01-00 Bracket, Engine 3 |
839-21429-01-00 |
US $30.24 |
||
|
7
|
7
839-21489-00-00
Bracket, Eng Lower
|
839-21489-00-00 |
— | ||
|
8
|
8
839-21482-00-00
Bolt, Eng Mntng 2
|
839-21482-00-00 |
— | ||
|
9
|
9
901-85100-30-00
Nut, Self-Locking
|
901-85100-30-00 |
— | ||
|
10
|
10
901-01100-56-00
Inactive Part Number
|
901-01100-56-00 |
— | ||
| replacements | |||||
|
10
|
10
901-01106-70-00
Bolt(2Jn)
|
901-01106-70-00 |
— | ||
|
10
|
10
90101-10513-00
Inactive Part Number
|
90101-10513-00 |
— | ||
|
11
|
11
902-08100-13-00
Washer, Conical Spr
|
902-08100-13-00 |
— | ||
|
12
|
12
901-06100-15-00
Bolt, Dome Head
|
901-06100-15-00 |
— | ||
|
13
|
13
844-77315-00-00
Bracket 1
|
844-77315-00-00 |
— | ||
|
14
|
14
841-77311-00-00
Guard, Drive
|
841-77311-00-00 |
— | ||
|
15
|
15
853-77324-00-00
Knob
|
853-77324-00-00 |
— | ||
|
16
|
16
905-01161-03-00
Spring 1
|
905-01161-03-00 |
— | ||
| replacement | |||||
|
16
|
16
806-77325-00-00
SPRING
|
806-77325-00-00 |
— | ||
|
17
|
17
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
17
|
17
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
18
|
18
91690-25016-00 Pin, Spring |
91690-25016-00 |
from US $2.98 |
||
|
19
|
19
806-77324-00-00
Knob
|
806-77324-00-00 |
— | ||
|
20
|
20
91609-40018-00 Pin,spring |
91609-40018-00 |
US $1.56 |
||
| replacement | |||||
|
20
|
20
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
