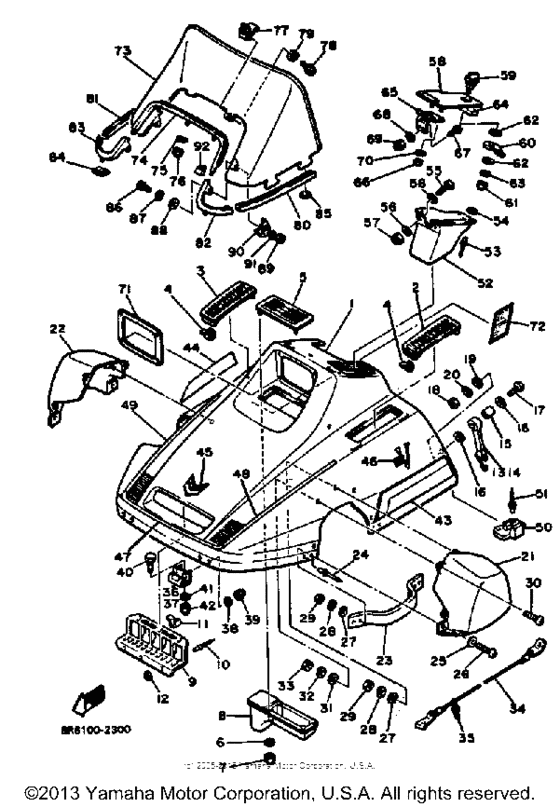

Shroud & windshield Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1982
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8R6-W7711-02-00
Shroud Assy
|
8R6-W7711-02-00 |
— | ||
| replacement | |||||
|
1
|
1
81G-W7711-00-00
Panel, Instrument
|
81G-W7711-00-00 |
— | ||
|
2
|
2
8L9-77133-00-00
Louver 3
|
8L9-77133-00-00 |
— | ||
|
3
|
3
8L9-77134-00-00
Louver 4
|
8L9-77134-00-00 |
— | ||
|
4
|
4
90468-05094-00 Clip |
90468-05094-00 |
US $5.62 |
||
|
5
|
5
8L9-77109-00-00
Louver 5 (83W-77109-00)
83W-77109-00 |
8L9-77109-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
83W-77109-00 |
999-99999-99-00 |
— | ||
|
6
|
6
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
7
|
7
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
7
|
7
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
8
|
8
8K4-7712E-00-00
Insulator
|
8K4-7712E-00-00 |
— | ||
|
9
|
9
8K4-77194-00-00
Duct
|
8K4-77194-00-00 |
— | ||
|
10
|
10
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
|
11
|
11
90468-05176-00 Clip |
90468-05176-00 |
from US $10.91 |
||
|
12
|
12
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
12
|
12
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
12
|
12
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
13
|
13
8N8-77170-00-00
Latch Assembly
|
8N8-77170-00-00 |
— | ||
|
14
|
14
8G5-77170-00-00 Latch Assembly |
8G5-77170-00-00 |
from US $27.99 |
||
|
15
|
15
90560-07007-00 Spacer |
90560-07007-00 |
from US $2.13 |
||
|
16
|
16
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
17
|
17
98906-06030-00 Screw, Bind |
98906-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
18
|
18
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
19
|
19
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
8L0-77121-00-00 Hood 1 |
8L0-77121-00-00 |
US $191.88 |
||
|
22
|
22
8L0-77122-00-00
Hood 2
|
8L0-77122-00-00 |
— | ||
|
23
|
23
8L0-77125-00-00
Stay 1
|
8L0-77125-00-00 |
— | ||
|
24
|
24
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.66 |
||
|
25
|
25
90201-05721-00 Washer, Plate |
90201-05721-00 |
from US $1.98 |
||
| replacement | |||||
|
25
|
25
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
26
|
26
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
27
|
27
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
28
|
28
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
29
|
29
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
30
|
30
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.66 |
||
|
31
|
31
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
34
|
34
8K4-77118-00-00
Stopper, Shroud
|
8K4-77118-00-00 |
— | ||
|
35
|
35
838-77159-00-00 Clamp, Rod |
838-77159-00-00 |
from US $6.10 |
||
|
36
|
36
8L8-77140-00-00
Hinge Assembly
|
8L8-77140-00-00 |
— | ||
|
37
|
37
8L8-7714A-00-00
Hinge Assembly 2
|
8L8-7714A-00-00 |
— | ||
|
38
|
38
90201-067A6-00
Washer, Plate
|
90201-067A6-00 |
— | ||
|
39
|
39
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
40
|
40
97026-06014-00 Bolt |
97026-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
40
|
40
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
41
|
41
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
42
|
42
95706-06300-00 Nut, Nylon |
95706-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
42
|
42
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
43
|
43
8R6-77163-00-00
Ornament 1
|
8R6-77163-00-00 |
— | ||
|
44
|
44
8R6-77164-00-00
Ornament 2
|
8R6-77164-00-00 |
— | ||
|
45
|
45
8R6-77357-00-00
Emblem 7
|
8R6-77357-00-00 |
— | ||
|
46
|
46
8R6-77358-00-00
Emblem 8
|
8R6-77358-00-00 |
— | ||
|
47
|
47
8R6-77281-00-00
Stripe 1
|
8R6-77281-00-00 |
— | ||
|
48
|
48
8R6-77282-00-00
Stripe 2
|
8R6-77282-00-00 |
— | ||
|
49
|
49
8R6-77283-00-00
Stripe 3
|
8R6-77283-00-00 |
— | ||
|
50
|
50
8K4-77188-00-00
Stopper
|
8K4-77188-00-00 |
— | ||
| replacement | |||||
|
50
|
50
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
8R6-W0070-00-00
Graphic Set
|
8R6-W0070-00-00 |
— | ||
|
51
|
51
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.81 |
||
|
52
|
52
8K4-77391-00-00
Luggage Box
|
8K4-77391-00-00 |
— | ||
|
53
|
53
90267-48078-00
Rivet, Blind
|
90267-48078-00 |
— | ||
| replacements | |||||
|
53
|
53
902-67489-UJ-00
Rivet, Blind
|
902-67489-UJ-00 |
— | ||
|
53
|
53
90267-48950-00
Rivet, Blind(Ge1)
|
90267-48950-00 |
— | ||
|
54
|
54
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
54
|
54
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
54
|
54
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
55
|
55
98516-06020-00 Screw Pan Head |
98516-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
55
|
55
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
56
|
56
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
56
|
56
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
56
|
56
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
57
|
57
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
57
|
57
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
58
|
58
8L9-77392-00-00
Cover, Luggage Box
|
8L9-77392-00-00 |
— | ||
|
59
|
59
8L9-77324-00-00
Knob
|
8L9-77324-00-00 |
— | ||
|
60
|
60
8K4-77328-00-00 Lever, Arm Fitting |
8K4-77328-00-00 |
from US $5.29 |
||
|
61
|
61
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
61
|
61
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
62
|
62
90201-10119-00 Washer, Plate |
90201-10119-00 |
from US $1.42 |
||
|
63
|
63
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
64
|
64
8K4-77374-00-00 Damper 2 |
8K4-77374-00-00 |
from US $2.35 |
||
|
65
|
65
8K4-77470-00-00
Hinge Assembly
|
8K4-77470-00-00 |
— | ||
|
66
|
66
95306-05800-00 Nut |
95306-05800-00 |
from US $1.56 |
||
| replacement | |||||
|
66
|
66
95307-05800-00 Nut |
95307-05800-00 |
from US $1.56 |
||
|
67
|
67
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
67
|
67
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
68
|
68
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
69
|
69
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
69
|
69
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
70
|
70
92906-05200-00 Washer |
92906-05200-00 |
from US $1.56 |
||
| replacements | |||||
|
70
|
70
92907-05200-00 Washer |
92907-05200-00 |
from US $1.56 |
||
|
70
|
70
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
71
|
71
8K4-77165-00-00
Trim 1
|
8K4-77165-00-00 |
— | ||
| replacement | |||||
|
71
|
71
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
72
|
72
8R6-77743-00-00 Indicator 3 |
8R6-77743-00-00 |
US $6.14 |
||
|
73
|
73
8L0-77210-00-XX
Windshield (8L0-77210-00)
8L0-77210-00 |
8L0-77210-00-XX |
— | ||
|
74
|
74
8L0-77214-00-00
Trim, Lower
|
8L0-77214-00-00 |
— | ||
|
75
|
75
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
75
|
75
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
75
|
75
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
76
|
76
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
76
|
76
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
77
|
77
8K4-77222-00-00
Bracket, Wndshld R
|
8K4-77222-00-00 |
— | ||
|
78
|
78
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
78
|
78
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
79
|
79
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
80
|
80
8L0-77215-00-00
Trim 3
|
8L0-77215-00-00 |
— | ||
|
81
|
81
8L0-77216-00-00
Trim 4
|
8L0-77216-00-00 |
— | ||
|
82
|
82
8L0-77225-00-00
Trim 5
|
8L0-77225-00-00 |
— | ||
|
83
|
83
8L0-77226-00-00 Trim 6 |
8L0-77226-00-00 |
from US $34.78 |
||
|
84
|
84
90183-05019-00 Nut, Spring |
90183-05019-00 |
from US $1.70 |
||
| replacement | |||||
|
84
|
84
90183-05068-00 Nut, Spring |
90183-05068-00 |
from US $1.70 |
||
|
85
|
85
82H-77223-00-00 Fastner |
82H-77223-00-00 |
from US $1.94 |
||
|
86
|
86
973-13050-16-00
Bolt, Hexagon
|
973-13050-16-00 |
— | ||
|
87
|
87
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
88
|
88
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
89
|
89
95306-05800-00 Nut |
95306-05800-00 |
from US $1.56 |
||
| replacement | |||||
|
89
|
89
95307-05800-00 Nut |
95307-05800-00 |
from US $1.56 |
||
|
90
|
90
8L9-77116-00-00
Washer, Special
|
8L9-77116-00-00 |
— | ||
|
91
|
91
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
91
|
91
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
92
|
92
8L0-77136-00-00 Clamp 2 |
8L0-77136-00-00 |
US $10.35 |
||
