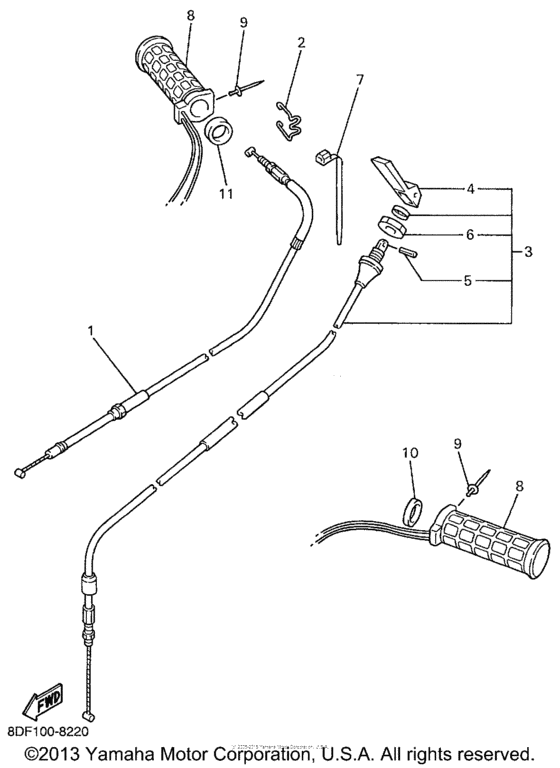

Control cable Diagram Yamaha SRX700
- Model code
- SRX700S
- Engine Capacity
- 700
- Year
- 1999
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CH-26311-00-00 Cable, Throttle 1 |
8CH-26311-00-00 |
from US $34.83 |
||
| replacement | |||||
|
1
|
1
8CH-26311-01-00 Cable, Throttle 1 |
8CH-26311-01-00 |
from US $34.83 |
||
|
2
|
2
8M6-26391-01-00
Clip, Cable
|
8M6-26391-01-00 |
— | ||
|
3
|
3
8CH-26330-01-00
Starter Cable Assy
|
8CH-26330-01-00 |
— | ||
| replacement | |||||
|
3
|
3
8CH-26330-02-00 Starter Cable Assy |
8CH-26330-02-00 |
US $56.57 |
||
|
4
|
4
8U9-26325-00-00 Knob, Starter |
8U9-26325-00-00 |
from US $6.52 |
||
|
5
|
5
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
5
|
5
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
6
|
6
8G8-26333-00-00 Nut |
8G8-26333-00-00 |
from US $3.12 |
||
|
7
|
7
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
7
|
7
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
8
|
8
88T-26240-00-00 88T Grip Black 1 PcPC |
88T-26240-00-00 |
US $95.05 |
||
| replacements | |||||
|
8
|
8
88T-26240-85-BK
FOOTREST, REAR 1
PC |
88T-26240-85-BK |
— | ||
|
8
|
8
999-99034-93-00 Grip AssyPC |
999-99034-93-00 |
from US $95.05 |
||
|
9
|
9
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
10
|
10
90387-22726-00
Collar
|
90387-22726-00 |
— | ||
|
11
|
11
90387-224F9-00
Collar
|
90387-224F9-00 |
— | ||
