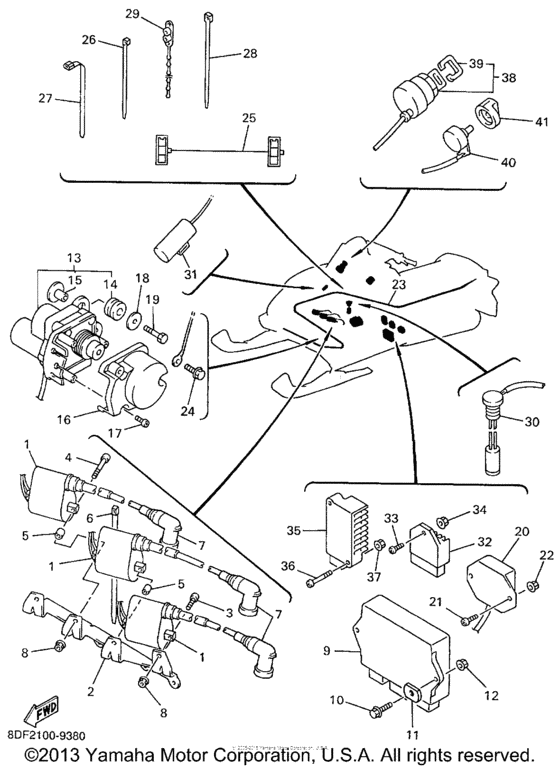

Electrical (1) Diagram Yamaha SRX700
- Model code
- SRX700S
- Engine Capacity
- 700
- Year
- 1999
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DF-82310-00-00 Ignition Coil Assembly |
8DF-82310-00-00 |
US $79.45 |
||
| replacement | |||||
|
1
|
1
8DF-82310-10-00 Ignition Coil Assy |
8DF-82310-10-00 |
US $79.45 |
||
|
2
|
2
8DF-82316-00-00 Bracket, Ignition Coil |
8DF-82316-00-00 |
US $46.33 |
||
|
3
|
3
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
4
|
4
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
5
|
5
90387-0714B-00 Collar |
90387-0714B-00 |
from US $1.98 |
||
| replacement | |||||
|
5
|
5
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
6
|
6
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
7
|
7
8DF-82370-00-00 Plug Cap Assy |
8DF-82370-00-00 |
from US $38.41 |
||
|
8
|
8
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
9
|
9
8DN-85540-00-00 C.d.i. Unit Assembly |
8DN-85540-00-00 |
US $704.50 |
||
|
10
|
10
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
10
|
10
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
11
|
11
90179-06264-00 Nut,spec'l Shape |
90179-06264-00 |
from US $0.97 |
||
| replacement | |||||
|
11
|
11
901-7906W-01-00 element |
901-7906W-01-00 |
US $0.97 |
||
|
12
|
12
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
13
|
13
8DF-85820-00-00 Servo Motor Assy |
8DF-85820-00-00 |
from US $508.36 |
||
|
14
|
14
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
15
|
15
90387-063G3-00 Collar |
90387-063G3-00 |
from US $8.05 |
||
|
16
|
16
8DF-85829-00-00 Cover, Servo Motor |
8DF-85829-00-00 |
US $18.18 |
||
|
17
|
17
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
17
|
17
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
18
|
18
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
19
|
19
97007-06030-00 Bolt |
97007-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
20
|
20
82M-81910-A0-00 Voltage Regulator Assy |
82M-81910-A0-00 |
from US $59.55 |
||
|
21
|
21
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
22
|
22
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
23
|
23
8DF-82590-10-00
Wire Harness Assembly
|
8DF-82590-10-00 |
— | ||
|
24
|
24
97007-06010-00 Bolt |
97007-06010-00 |
from US $1.66 |
||
| replacement | |||||
|
24
|
24
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
25
|
25
8CR-8471G-00-00 Wire, Lead |
8CR-8471G-00-00 |
from US $7.34 |
||
|
26
|
26
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
27
|
27
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
27
|
27
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
28
|
28
904-64130-77-00 Clamp |
904-64130-77-00 |
from US $1.94 |
||
| replacement | |||||
|
28
|
28
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
29
|
29
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
29
|
29
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
30
|
30
8CR-85720-00-00 Oil Level Gauge Assy |
8CR-85720-00-00 |
from US $44.80 |
||
| replacement | |||||
|
30
|
30
8CR-85720-02-00 Oil Level Gauge Assy |
8CR-85720-02-00 |
from US $53.88 |
||
|
31
|
31
1NL-81965-01-00 Condenser, Smoothing |
1NL-81965-01-00 |
from US $121.72 |
||
|
32
|
32
8AB-81910-00-00 Voltage Regulator Assy |
8AB-81910-00-00 |
US $120.44 |
||
|
33
|
33
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
34
|
34
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
35
|
35
8DF-81960-00-00
Rectifier & Regulator Assembly
|
8DF-81960-00-00 |
— | ||
|
36
|
36
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
36
|
36
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
37
|
37
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
38
|
38
8AB-82510-00-00 Main Switch Assy |
8AB-82510-00-00 |
from US $94.36 |
||
| replacement | |||||
|
38
|
38
8AB-82510-01-00 Main Switch Assy |
8AB-82510-01-00 |
from US $85.55 |
||
|
39
|
39
526-82579-00-00 Cap, Key |
526-82579-00-00 |
from US $4.96 |
||
|
40
|
40
8CR-87283-00-00
Resistor, Variable
|
8CR-87283-00-00 |
— | ||
|
41
|
41
8AB-87284-00-00 Knob, Variable Resistor |
8AB-87284-00-00 |
from US $8.23 |
||
