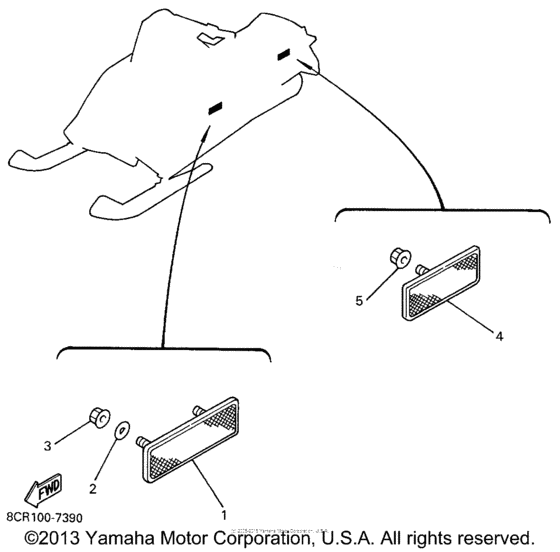

Electrical (2) Diagram Yamaha SRX700
- Model code
- SRX700S
- Engine Capacity
- 700
- Year
- 1999
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86R-85110-00-00 Reflector Assy |
86R-85110-00-00 |
from US $12.06 |
||
|
2
|
2
902-01050-36-00
Washer, Plate
|
902-01050-36-00 |
— | ||
| replacement | |||||
|
2
|
2
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
3
|
3
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
4
|
4
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
5
|
5
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
