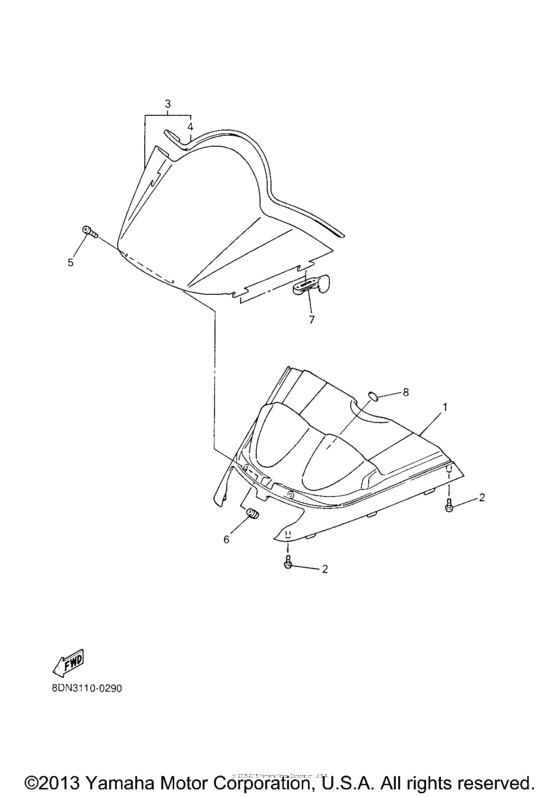

Windshield Diagram Yamaha SRX700
- Model code
- SRX700S
- Engine Capacity
- 700
- Year
- 2000
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DN-77251-10-00
Cover, Headlight
|
8DN-77251-10-00 |
— | ||
|
2
|
2
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
2
|
2
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
3
|
3
8DN-77210-00-00 8Dn-Low Blue Bottom |
8DN-77210-00-00 |
US $292.58 |
||
| replacements | |||||
|
3
|
3
8DN-77210-00-BU
Windshield :sm
|
8DN-77210-00-BU |
— | ||
|
3
|
3
8DN-77210-00-XX
New Genuine Part
|
8DN-77210-00-XX |
— | ||
|
4
|
4
8CV-77213-00-00 Trim, Upper |
8CV-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
4
|
4
87K-77213-00-00
Trim, Upper
|
87K-77213-00-00 |
— | ||
|
5
|
5
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.81 |
||
|
6
|
6
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
|
7
|
7
82H-77223-00-00 Fastner |
82H-77223-00-00 |
from US $1.94 |
||
|
8
|
8
4XV-2341B-00-00 Emblem |
4XV-2341B-00-00 |
from US $18.03 |
||
