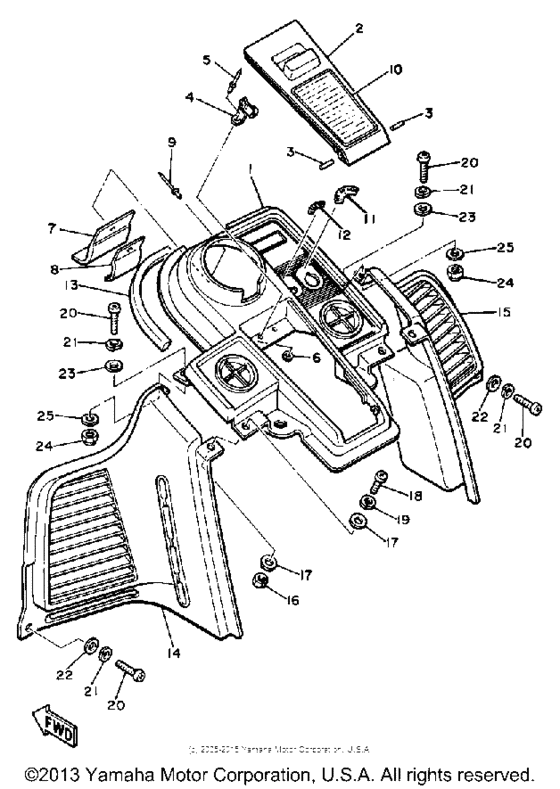

Instrument panel Diagram Yamaha SS440
- Model code
- SS440
- Engine Capacity
- 440
- Year
- 1981
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8L8-77711-01-00
Panel, Instrument
|
8L8-77711-01-00 |
— | ||
| replacements | |||||
|
1
|
1
8Y0-77711-00-00
Panel, Instrument
|
8Y0-77711-00-00 |
— | ||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
8K4-77712-00-00
Panel, Instrument
|
8K4-77712-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
8K4-77477-00-00 Pin, Hinge |
8K4-77477-00-00 |
US $3.51 |
||
|
4
|
4
821-24794-01-00
Spring, Seat Back
|
821-24794-01-00 |
— | ||
|
5
|
5
90267-32072-00 Rivet, Blind |
90267-32072-00 |
from US $2.55 |
||
| replacement | |||||
|
5
|
5
90267-32146-00 Rivet, Blind |
90267-32146-00 |
from US $2.55 |
||
|
6
|
6
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
7
|
7
8K4-77161-00-00
Strip, Weather 1
|
8K4-77161-00-00 |
— | ||
|
8
|
8
8K4-77185-00-00
Plate 1
|
8K4-77185-00-00 |
— | ||
|
9
|
9
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.66 |
||
|
10
|
10
8K4-77761-00-00
Label, Warning 1
|
8K4-77761-00-00 |
— | ||
|
11
|
11
8K2-77741-00-00 Indicator 1 |
8K2-77741-00-00 |
from US $1.05 |
||
| replacement | |||||
|
11
|
11
8K2-77741-01-00 Indicator 1 |
8K2-77741-01-00 |
from US $1.05 |
||
|
12
|
12
8K4-77742-00-00 Indicator 2 |
8K4-77742-00-00 |
from US $1.43 |
||
|
13
|
13
8K4-77162-00-00
Strip, Weather 2
|
8K4-77162-00-00 |
— | ||
|
14
|
14
8K4-77131-00-00 Louver 1 |
8K4-77131-00-00 |
from US $103.69 |
||
|
15
|
15
8K4-77132-00-00 Louver 2 |
8K4-77132-00-00 |
from US $101.41 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
17
|
17
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
17
|
17
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
17
|
17
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
18
|
18
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
18
|
18
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
19
|
19
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
20
|
20
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
20
|
20
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
21
|
21
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
22
|
22
90201-060A3-00 Washer, Plate |
90201-060A3-00 |
from US $1.98 |
||
| replacement | |||||
|
22
|
22
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
24
|
24
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
25
|
25
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
