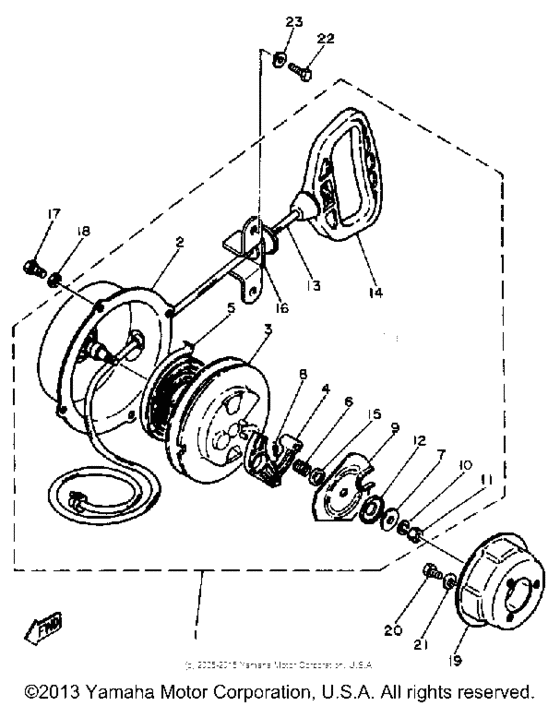

Starter Diagram Yamaha SS440
- Model code
- SS440
- Engine Capacity
- 440
- Year
- 1981
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8K4-15710-00-00
Starter Asy
|
8K4-15710-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99029-87-00
Starter Assy
|
999-99029-87-00 |
— | ||
|
2
|
2
8H8-15711-00-00 Case, Starter |
8H8-15711-00-00 |
from US $123.24 |
||
|
3
|
3
8F3-15714-01-00 Drum, Sheave |
8F3-15714-01-00 |
from US $40.09 |
||
|
4
|
4
8F3-15741-01-00 Pawl, Drive |
8F3-15741-01-00 |
from US $12.48 |
||
|
5
|
5
8Y0-15713-00-00 Spring, Starter |
8Y0-15713-00-00 |
from US $26.64 |
||
| replacement | |||||
|
5
|
5
8F3-15713-01-00 Spring, Starter |
8F3-15713-01-00 |
from US $26.08 |
||
|
6
|
6
8F3-15715-00-00 Spring, Friction |
8F3-15715-00-00 |
from US $3.89 |
||
|
7
|
7
8F3-15739-01-00 Washer, Thrust |
8F3-15739-01-00 |
from US $3.74 |
||
|
8
|
8
8F3-15734-00-00 Spring, Return |
8F3-15734-00-00 |
from US $7.36 |
||
|
9
|
9
8F3-15716-03-00 Plate, Drive |
8F3-15716-03-00 |
from US $10.13 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
12
|
12
8G5-15739-00-00 Washer, Thrust |
8G5-15739-00-00 |
from US $1.66 |
||
|
13
|
13
857-15751-00-00 Wire, Starter(Braided) (6Mm/1 |
857-15751-00-00 |
from US $17.28 |
||
| replacement | |||||
|
13
|
13
89A-15751-00-00 Wire, Starter |
89A-15751-00-00 |
from US $16.92 |
||
|
14
|
14
8F3-15755-00-00 Handle, Starter |
8F3-15755-00-00 |
from US $13.87 |
||
|
15
|
15
82M-15779-00-00 Collor |
82M-15779-00-00 |
from US $2.64 |
||
|
16
|
16
8K4-15788-00-00 Holder, Handle |
8K4-15788-00-00 |
from US $20.50 |
||
| replacement | |||||
|
16
|
16
8F3-15788-01-00 Holder, Handle |
8F3-15788-01-00 |
from US $15.77 |
||
|
17
|
17
97026-06014-00 Bolt |
97026-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
17
|
17
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
18
|
18
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
19
|
19
8H8-15723-01-00 Pulley, Starter |
8H8-15723-01-00 |
from US $17.20 |
||
|
20
|
20
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
20
|
20
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
20
|
20
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
97026-06012-00 Bolt(85G) |
97026-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
22
|
22
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
23
|
23
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
