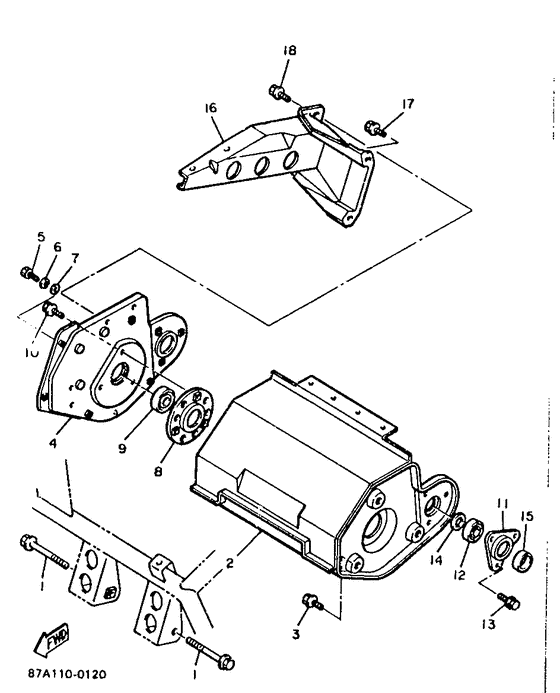

Engine bracket Diagram Yamaha SV125 SnoSport
- Model code
- 87C2
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- Europe (General) (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90105-08017-00 Bolt, Flange |
90105-08017-00 |
from US $2.43 |
||
| replacement | |||||
|
01
|
01
90105-08521-00 Bolt, Washer Based |
90105-08521-00 |
US $2.43 |
||
|
02
|
02
87A-21419-00-00 Bracket, Engine 2 |
87A-21419-00-00 |
US $72.49 |
||
|
03
|
03
95816-08016-00 Bolt, Flange |
95816-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
03
|
03
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
03
|
03
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
04
|
04
85G-21429-00-00
Bracket, Engine 3
|
85G-21429-00-00 |
— | ||
|
05
|
05
97026-06012-00 Bolt(85G) |
97026-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
05
|
05
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
06
|
06
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
07
|
07
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
08
|
08
85G-47551-00-00
Housing, Front Axle
|
85G-47551-00-00 |
— | ||
|
09
|
09
93306-00416-00 Bearing |
93306-00416-00 |
from US $14.70 |
||
| replacement | |||||
|
09
|
09
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.70 |
||
|
10
|
10
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
11
|
11
85G-47561-00-00 Housing, Secondary Shaft |
85G-47561-00-00 |
US $4.77 |
||
|
12
|
12
93306-00316-00 Bearing |
93306-00316-00 |
from US $20.54 |
||
|
13
|
13
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
14
|
14
90201-17256-00 Washer, Plate |
90201-17256-00 |
from US $3.09 |
||
|
15
|
15
903-87177-83-00
Collar
|
903-87177-83-00 |
— | ||
| replacement | |||||
|
15
|
15
90387-17009-00 Collar |
90387-17009-00 |
from US $5.24 |
||
|
16
|
16
87A-21435-00-00
Bracket, Muffler 1
|
87A-21435-00-00 |
— | ||
|
17
|
17
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
17
|
17
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
17
|
17
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
18
|
18
90105-08590-00 Bolt, Flange |
90105-08590-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
