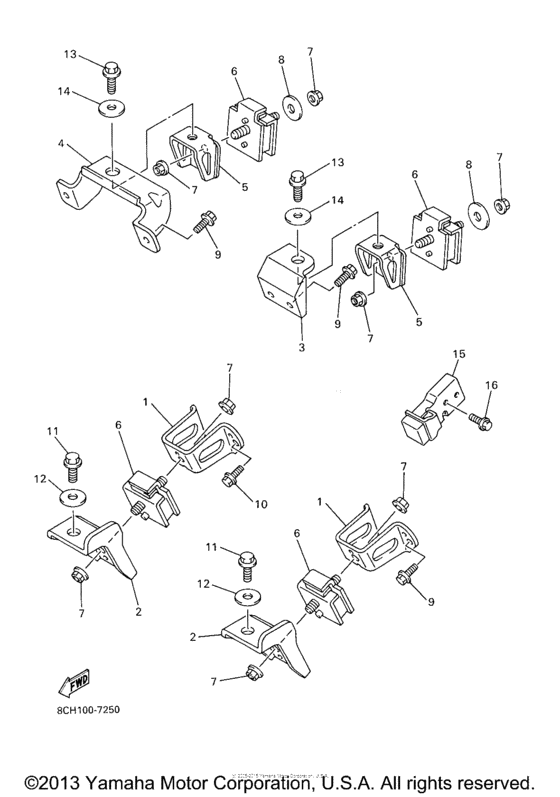

Engine bracket Diagram Yamaha SX700 SXR 700
- Model code
- SX700
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CH-21415-00-00 Bracket, Front Upper 1 |
8CH-21415-00-00 |
from US $33.23 |
||
|
2
|
2
8CR-21417-00-00 Bracket, Front Lower 1 |
8CR-21417-00-00 |
from US $37.21 |
||
|
3
|
3
8CR-21425-00-00 Bracket, Rear Upper 1 |
8CR-21425-00-00 |
from US $35.28 |
||
|
4
|
4
8CH-21425-00-00 Bracket, Rear Upper 1 |
8CH-21425-00-00 |
from US $37.26 |
||
|
5
|
5
8CR-21427-01-00 Bracket, Rear Lower 1 |
8CR-21427-01-00 |
US $18.99 |
||
|
6
|
6
8CH-21486-10-00 Damper 2 |
8CH-21486-10-00 |
from US $151.98 |
||
|
7
|
7
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
8
|
8
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
9
|
9
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
10
|
10
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
11
|
11
95827-12030-00 Bolt, Flange |
95827-12030-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
958-17120-30-00 Bolt, Flange(Jn5) |
958-17120-30-00 |
from US $1.56 |
||
|
12
|
12
90201-120U9-00 Washer, Plate |
90201-120U9-00 |
from US $4.43 |
||
|
13
|
13
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
14
|
14
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
15
|
15
8CH-21485-00-00 Damper, Rubber 1 |
8CH-21485-00-00 |
US $68.42 |
||
|
16
|
16
95827-08020-00 Bolt, Flange |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
16
|
16
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
