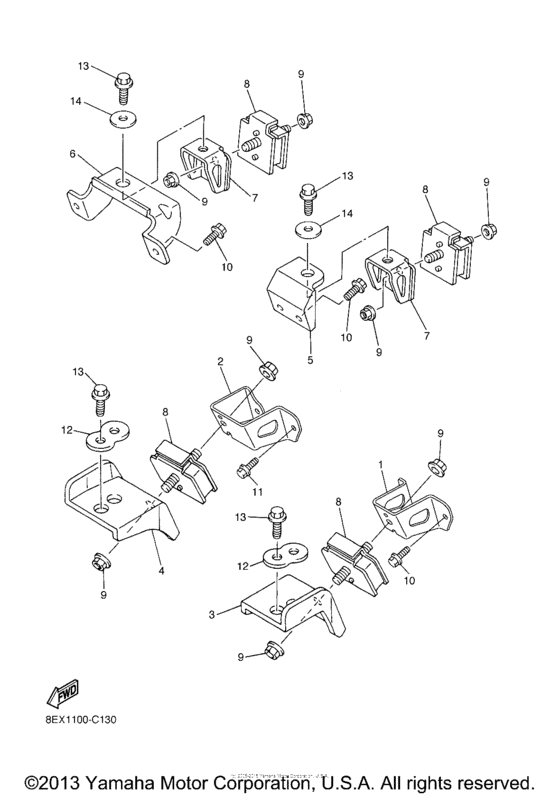

Engine bracket Diagram Yamaha SXV60 SX Venom
- Model code
- SXV60
- Engine Capacity
- 600
- Year
- 2006
- Sales region
- USA
- Model
- SX Venom
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8EX-21415-00-00 Bracket, Front Upper 1 |
8EX-21415-00-00 |
from US $22.24 |
||
|
2
|
2
8EX-21416-00-00 Bracket, Front Upper 2 |
8EX-21416-00-00 |
from US $27.20 |
||
|
3
|
3
8DF-21417-01-00 Bracket, Front Lower 1 |
8DF-21417-01-00 |
from US $33.91 |
||
|
4
|
4
8DF-21418-00-00 Bracket, Front Lower 2 |
8DF-21418-00-00 |
from US $41.49 |
||
|
5
|
5
8CR-21425-00-00 Bracket, Rear Upper 1 |
8CR-21425-00-00 |
from US $35.28 |
||
|
6
|
6
8CH-21425-00-00 Bracket, Rear Upper 1 |
8CH-21425-00-00 |
from US $37.26 |
||
|
7
|
7
8CR-21427-10-00 Bracket, Rear Lower 1 |
8CR-21427-10-00 |
from US $26.91 |
||
|
8
|
8
8CH-21486-10-00 Damper 2 |
8CH-21486-10-00 |
from US $151.98 |
||
|
9
|
9
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
9
|
9
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
10
|
10
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
11
|
11
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
12
|
12
8DF-2145B-10-00 Plate, Engine Mount |
8DF-2145B-10-00 |
from US $10.22 |
||
|
13
|
13
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
14
|
14
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
