Windshield Diagram Yamaha SXV70 SX Viper ER
- Model code
- 8FB7
- Engine Capacity
- 696
- Year
- 2005
- Sales region
- Japan (020)
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Color Variant
- A
- Power
- 120 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- SX Viper ER
Difficulties in parts search?
Difficulties in parts search?

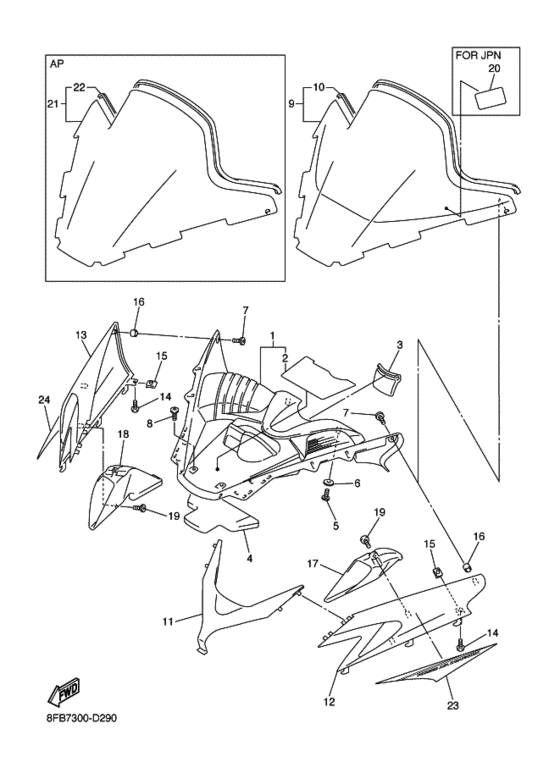

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8EK-W7725-10-00 Cover, HeadlightＣＯＶＥＲ， ＨＥＡＤＬＩＧＨＴ; |
8EK-W7725-10-00 |
from US $238.40 |
||
|
2
|
2
8EK-77198-10-00 Damper 1ＤＡＭＰＥＲ １; |
8EK-77198-10-00 |
from US $50.51 |
||
|
3
|
3
8FE-78447-00-00 Trim, SeatＴＲＩＭ， ＳＥＡＴ; |
8FE-78447-00-00 |
from US $18.36 |
||
|
4
|
4
8EK-77277-00-00 Damper, Noise 17ＤＡＭＰＥＲ， ＮＯＩＳＥ １７; |
8EK-77277-00-00 |
from US $7.93 |
||
|
5
|
5
90167-05078-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
90167-05078-00 |
from US $1.56 |
||
|
6
|
6
90201-05029-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05029-00 |
from US $1.98 |
||
|
7
|
7
90167-05079-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
90167-05079-00 |
from US $1.66 |
||
|
8
|
8
98907-06014-00 Screw, BindingＳＣＲＥＷ， ＢＩＮＤ; |
98907-06014-00 |
from US $1.66 |
||
|
9
|
9
8FB-77210-00-00 Windshield CompＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ．; |
8FB-77210-00-00 |
US $386.01 |
||
|
10
|
10
8FB-77213-00-00 Trim, UpperＴＲＩＭ， ＵＰＰＥＲ; |
8FB-77213-00-00 |
US $51.53 |
||
|
11
|
11
8EK-77231-10-00
Fairing
ＦＡＩＲＩＮＧ; |
8EK-77231-10-00 |
— | ||
|
12
|
12
8EK-7723A-10-00 Fairing 2ＦＡＩＲＩＮＧ ２; |
8EK-7723A-10-00 |
US $128.39 |
||
|
13
|
13
8EK-7723B-10-00 Fairing 3ＦＡＩＲＩＮＧ ３; |
8EK-7723B-10-00 |
US $128.07 |
||
|
14
|
14
98907-06020-00 Screw, BindＳＣＲＥＷ， ＢＩＮＤ; |
98907-06020-00 |
from US $1.33 |
||
|
15
|
15
901-83060-53-00
Nut, Spring
ＮＵＴ， ＳＰＲＩＮＧ; |
901-83060-53-00 |
— | ||
| replacement | |||||
|
15
|
15
90183-06069-00 Nut, SpringＮＵＴ， ＳＰＲＩＮＧ; |
90183-06069-00 |
from US $3.72 |
||
|
16
|
16
8EK-77238-00-00 DamperＤＡＭＰＥＲ; |
8EK-77238-00-00 |
from US $2.05 |
||
|
17
|
17
8EK-2838N-00-00 Duct 1ＤＵＣＴ １; |
8EK-2838N-00-00 |
from US $27.31 |
||
|
18
|
18
8EK-2838R-00-00 Duct 2ＤＵＣＴ ２; |
8EK-2838R-00-00 |
from US $21.73 |
||
|
19
|
19
97707-50012-00 Screw, Truss Head TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97707-50012-00 |
from US $1.28 |
||
|
20
|
20
80V-2835Y-90-00
Caution Label 1
ＬＡＢＥＬ， ＣＡＵＴＩＯＮ; ＦＯＲ ＪＰＮ |
80V-2835Y-90-00 |
— | ||
|
21
|
21
8EK-77210-00-00 Windshield CompＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ．; ＡＰ |
8EK-77210-00-00 |
US $292.58 |
||
|
22
|
22
8EK-77213-00-00 Trim, UpperＴＲＩＭ， ＵＰＰＥＲ; ＡＰ |
8EK-77213-00-00 |
US $50.57 |
||
|
23
|
23
8EK-77252-00-00 Graphic, Fairing 1ＧＲＡＰＨＩＣ， ＦＡＩＲＩＮＧ １; |
8EK-77252-00-00 |
US $24.16 |
||
|
24
|
24
8EK-77253-00-00 Graphic, Fairing 2ＧＲＡＰＨＩＣ， ＦＡＩＲＩＮＧ ２; |
8EK-77253-00-00 |
from US $32.98 |
||
