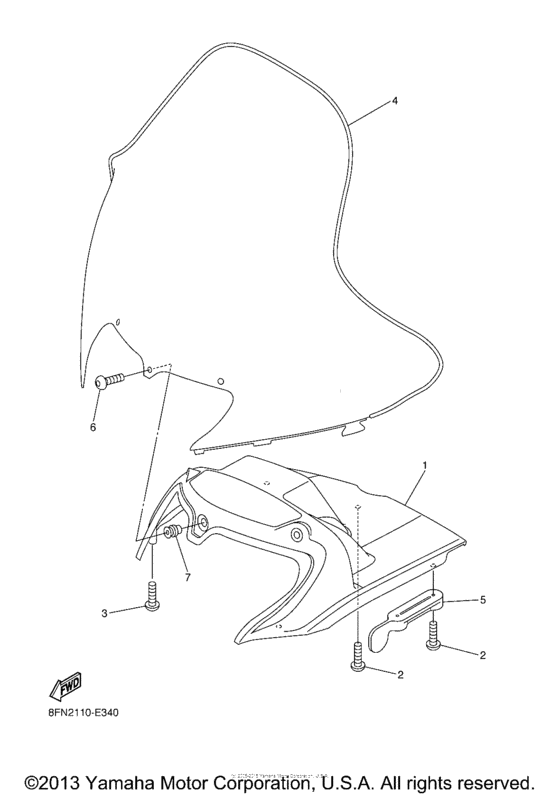

Windshield Diagram Yamaha VK 10 RS Viking Professional
- Model code
- 8FN2
- Engine Capacity
- 973
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- RS Viking Professional
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FN-77251-00-00 Cover, Headlight |
8FN-77251-00-00 |
from US $54.86 |
||
|
2
|
2
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
2
|
2
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
3
|
3
977-07500-20-00
Screw, Tapping
|
977-07500-20-00 |
— | ||
| replacement | |||||
|
3
|
3
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
4
|
4
8FN-K7210-00-00 Windshield |
8FN-K7210-00-00 |
US $182.88 |
||
| replacement | |||||
|
4
|
4
8FN-77210-00-XX Windshield |
8FN-77210-00-XX |
US $193.04 |
||
|
5
|
5
82H-77223-00-00 Fastner |
82H-77223-00-00 |
from US $1.94 |
||
|
6
|
6
90149-05299-00 Screw |
90149-05299-00 |
from US $1.66 |
||
|
7
|
7
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
