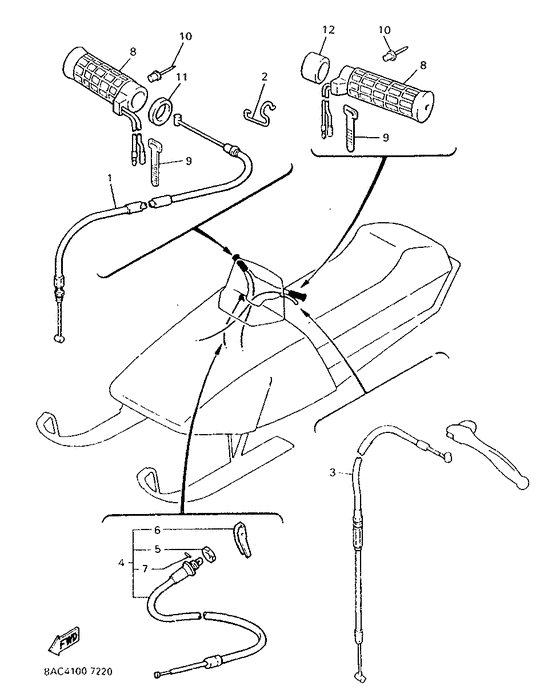

Control cable Diagram Yamaha VK540 VK540 III
- Model code
- 8AC7
- Engine Capacity
- 535
- Year
- 2000
- Sales region
- Japan (999)
- Colour
- Dark Cyan Metallic 2 (DCM2; 0337)
- Power
- 46 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- VK540 III
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
83R-26311-02-00 Cable, Throttle 1 |
83R-26311-02-00 |
from US $22.81 |
||
| replacement | |||||
|
01
|
01
83R-26311-10-00 Cable, Throttle 1 |
83R-26311-10-00 |
from US $22.81 |
||
|
02
|
02
90465-10189-00 Clamp |
90465-10189-00 |
from US $3.40 |
||
|
03
|
03
87R-26340-01-00 Cable, Brake |
87R-26340-01-00 |
from US $33.29 |
||
|
04
|
04
83R-26331-01-00 Cable, Starter 1 |
83R-26331-01-00 |
from US $32.04 |
||
|
05
|
05
8G8-26333-00-00 Nut |
8G8-26333-00-00 |
from US $3.12 |
||
|
06
|
06
8U9-26325-00-00 Knob, Starter |
8U9-26325-00-00 |
from US $7.21 |
||
|
07
|
07
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
07
|
07
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
08
|
08
88T-26240-00-00 88T Grip Black 1 Pc |
88T-26240-00-00 |
US $95.05 |
||
| replacements | |||||
|
08
|
08
88T-26240-85-BK
FOOTREST, REAR 1
|
88T-26240-85-BK |
— | ||
|
08
|
08
999-99034-93-00 Grip Assy |
999-99034-93-00 |
from US $95.05 |
||
|
09
|
09
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
10
|
10
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
11
|
11
80Y-23843-00-00 Washer, Plain |
80Y-23843-00-00 |
from US $6.88 |
||
|
12
|
12
90387-22726-00
Collar
|
90387-22726-00 |
— | ||
